Brand
XIHO
Type
16S1P Vertical Battery Box
BMS
PACE 200A BMS
Color
White Or Customized
Dimensions
450mm*253mm*938mm
Communication
CAN/RS485
Compatible with
Various brands of 345/314/300/280Ah Cells
OEM/ODM
Acceptable
XIHO selects only the finest battery components for our customers.
We are official distributors of JK, PACE, and JBD brands. We also supply safe battery pack accessories, including busbars and terminals with a copper content exceeding 99.9%, flame-retardant enclosure materials, and internationally certified circuit breakers.
Just show us what kinds of BMS you need.
We will quote the RIGHT BMS/KITS and accessories together.
100% after-sales support
100% technical support
Items | Parameter |
Manufacturer | XIHO |
Product Type | 51.2V 48V Vertical Lifepo4 DIY Battery Box KITS |
BMS | PACE 200A BMS JK-PB2A16S-20P |
Color | White Or Customized |

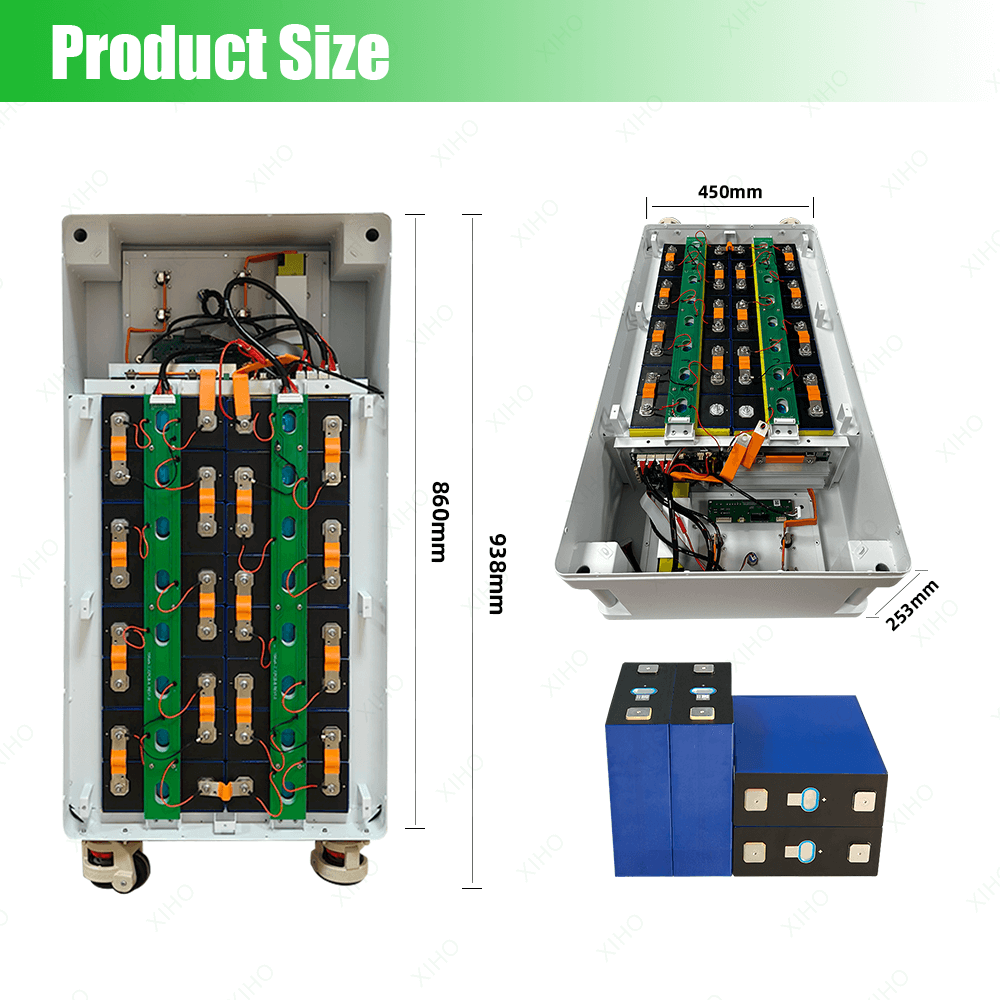

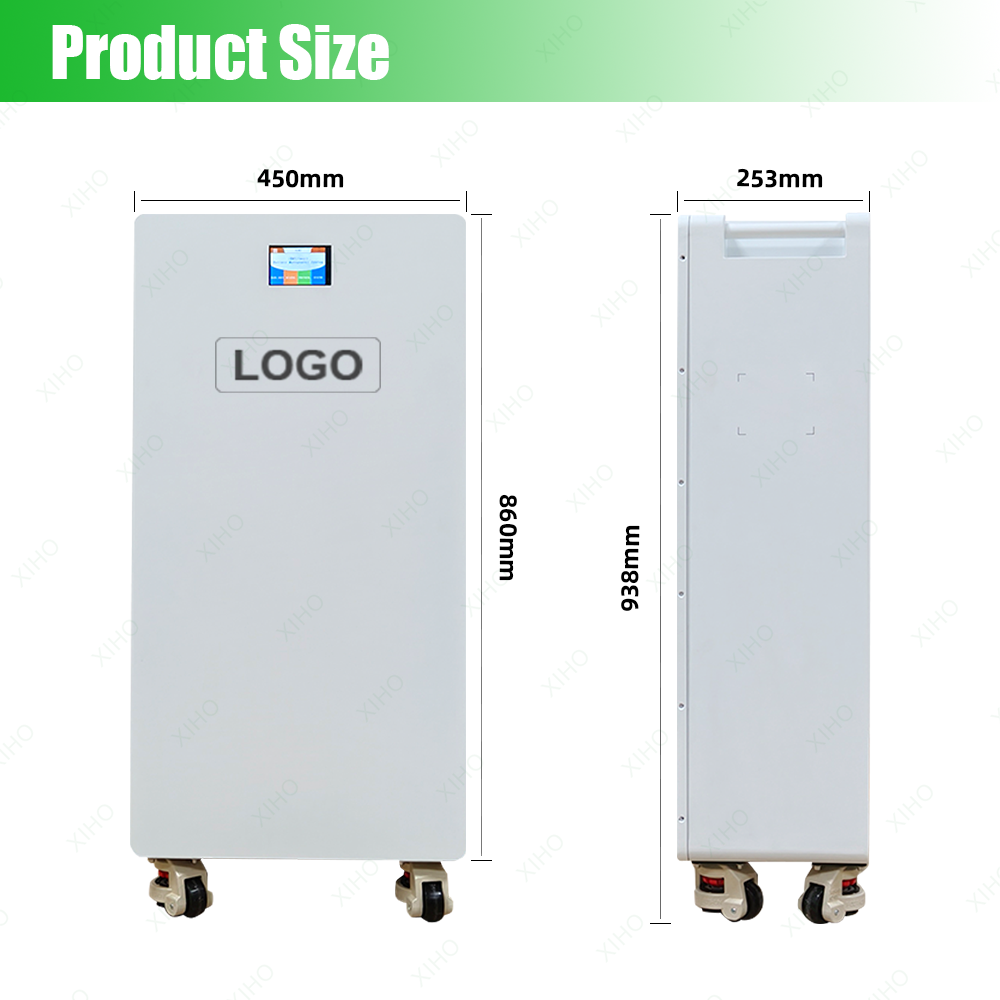

Dimensions | T253*W450*H938(mm) |
Weight(Approximate) | DIY Kits:30KG; Box With Battery:120Kg |
Materials | Metal and Fire-Retardant Coating |
Compatible with | Various brands of 345/314/300/280Ah Lifepo4 Cells |
Compatible Inverter | PYLON,DEYE,GROWATT,GOODWE,VICTRON,MUST,SRNE,SMA,etc |
Communication Port | RS485 CAN |
Parallel Connection | Max 15 Units in Parallels |
Series Connection | No |

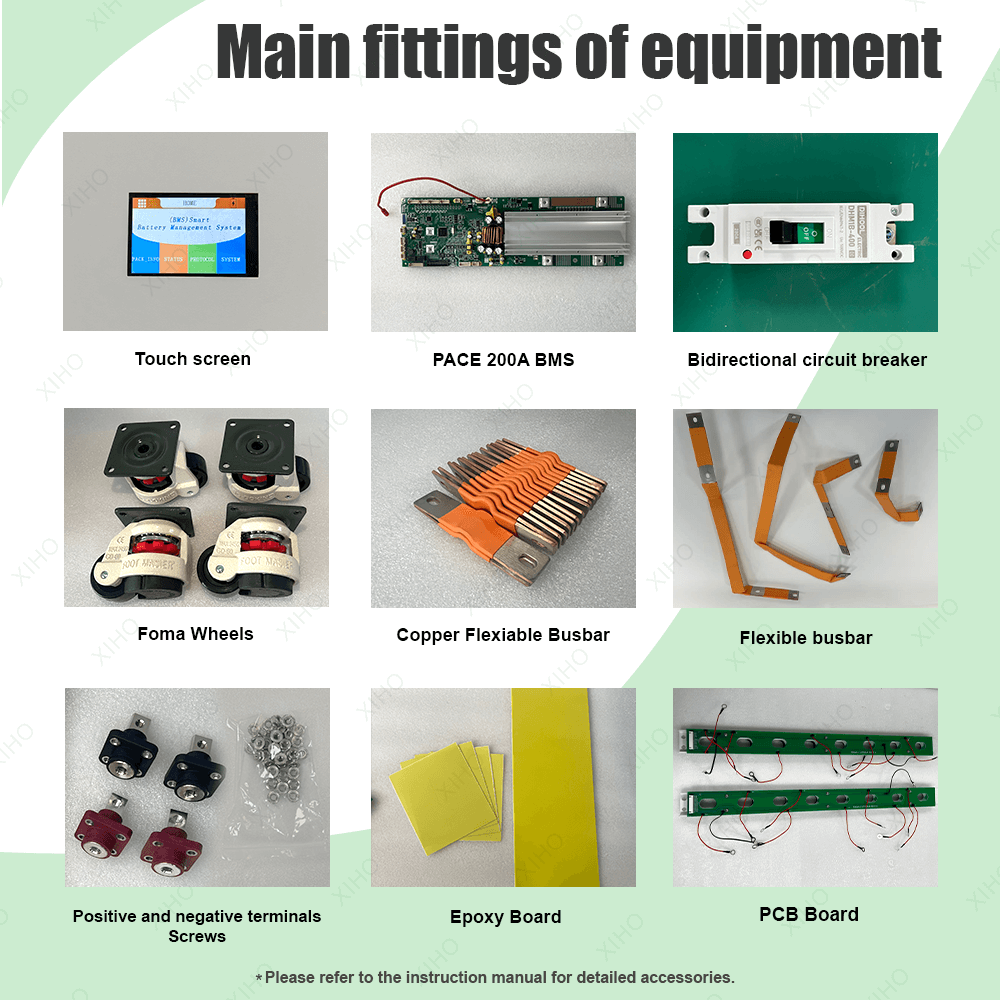

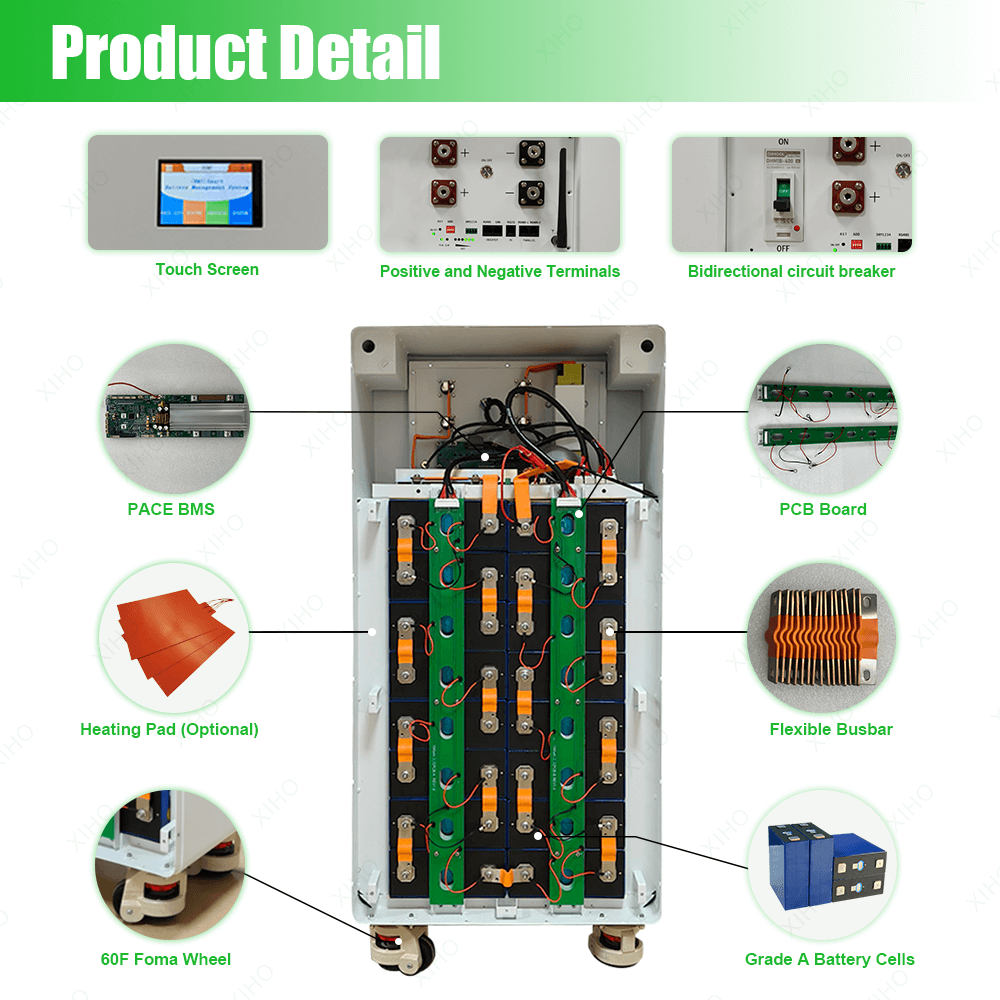

Included | 1.Metal Box;2.PCB Board;3.Smart BMS;4.Display Screen. |

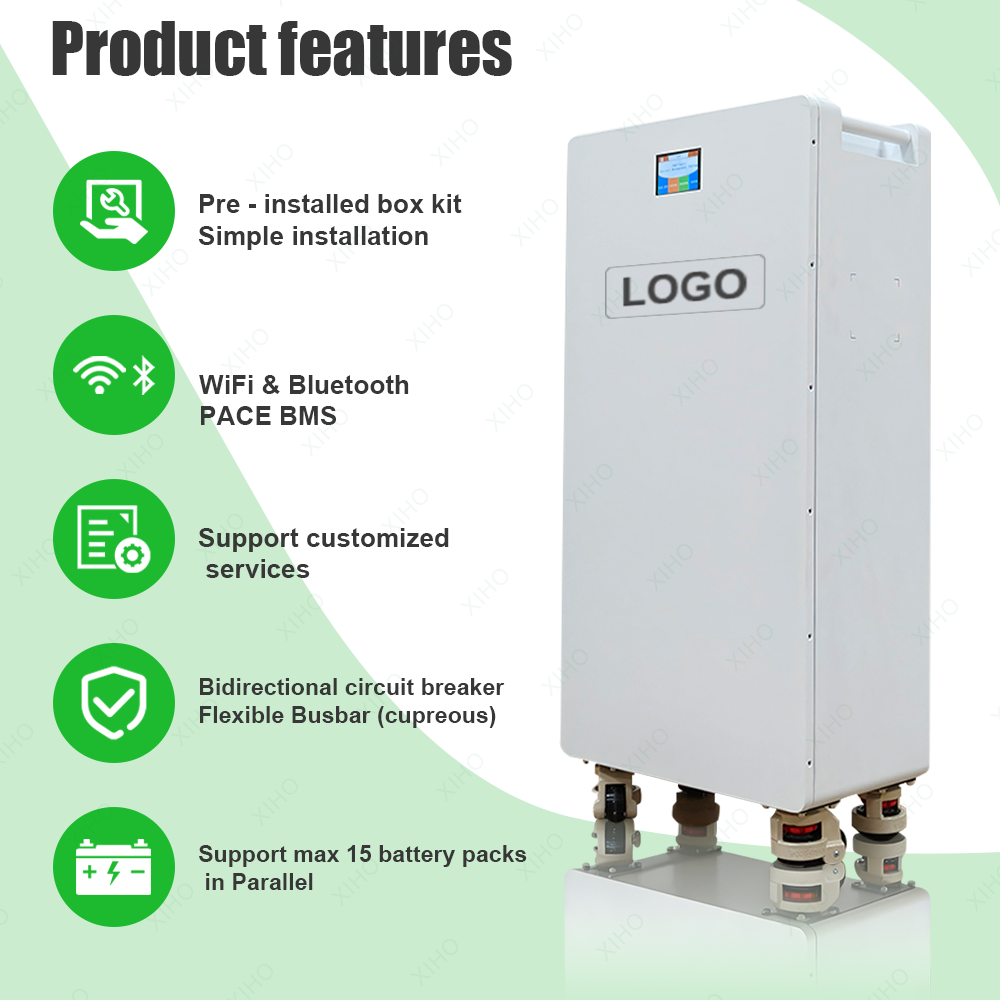

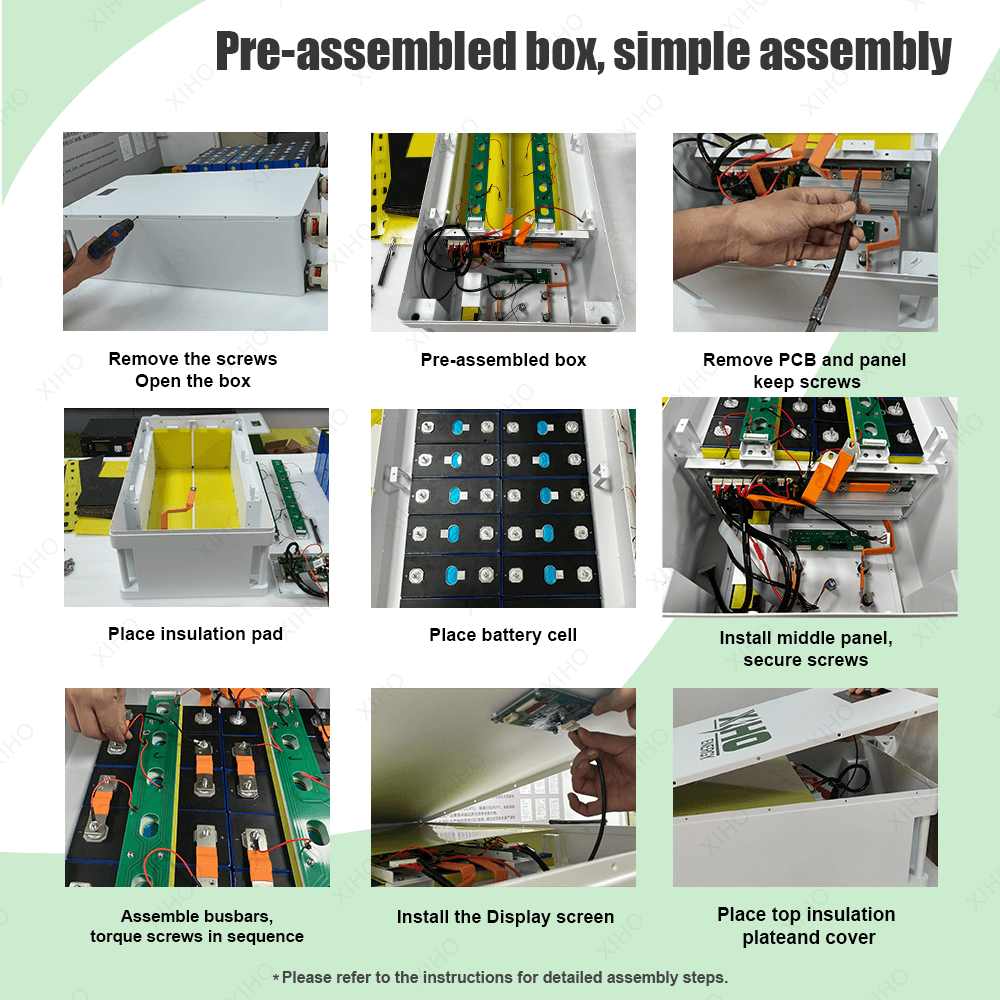

Pre-Installed & User-Friendly DIY Design
XIHO 51.2V 314Ah Vertical DIY LifePo4 Battery BOX provides a complete pre-installed kit for tool-free installation, reducing setup time and enabling accessible energy storage for DIY enthusiasts.
Smart Monitoring with Advanced BMS Technology
XIHO 51.2V 314Ah Vertical DIY LifePo4 Battery BOX integrates Bluetooth and PACE BMS for real-time monitoring and remote control of battery health via smartphone or computer.
High Scalability with Robust Safety Features
XIHO 51.2V 314Ah Vertical DIY LifePo4 Battery BOX supports expansion to 15 units in parallel, with safety components like circuit breakers and busbars for safe, scalable power.

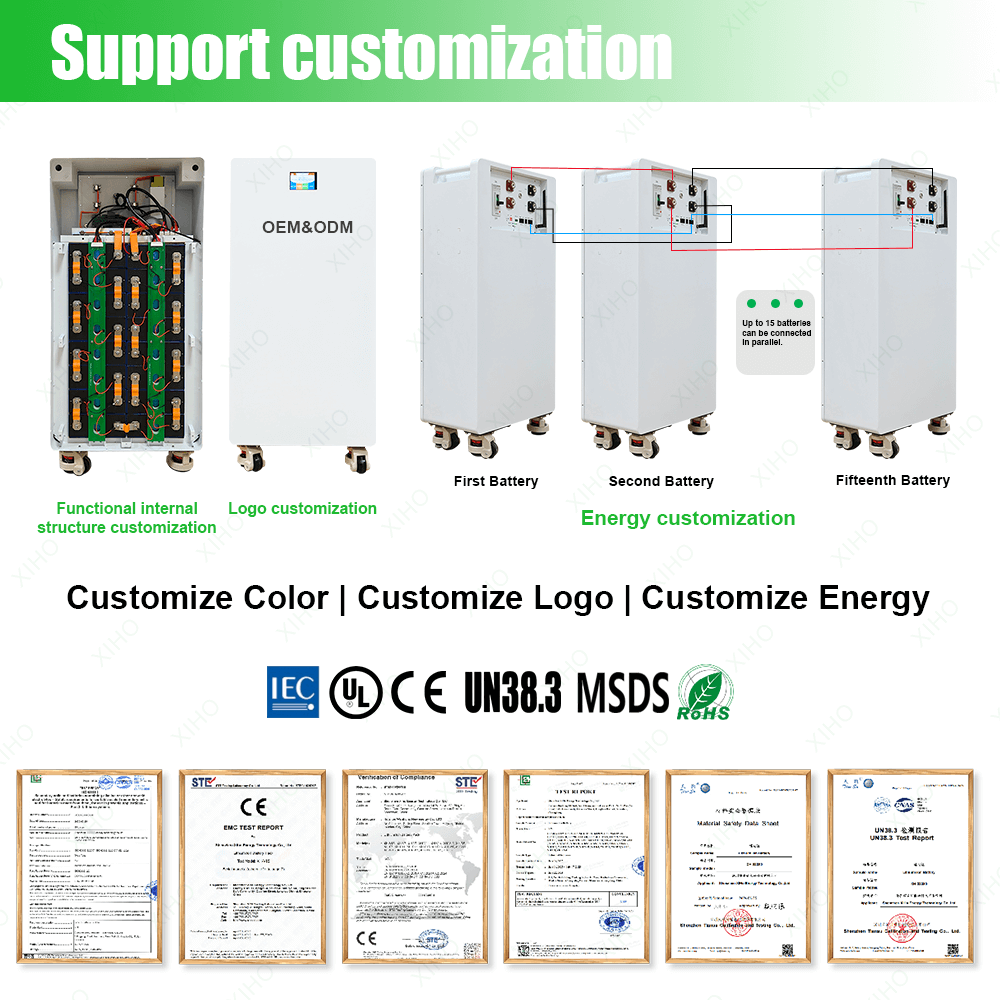

Customizable Solution for Diverse Applications
XIHO 51.2V 314Ah Vertical DIY LifePo4 Battery BOX offers customization for BMS, connectivity, or capacity to meet diverse residential, commercial, or off-grid project needs.

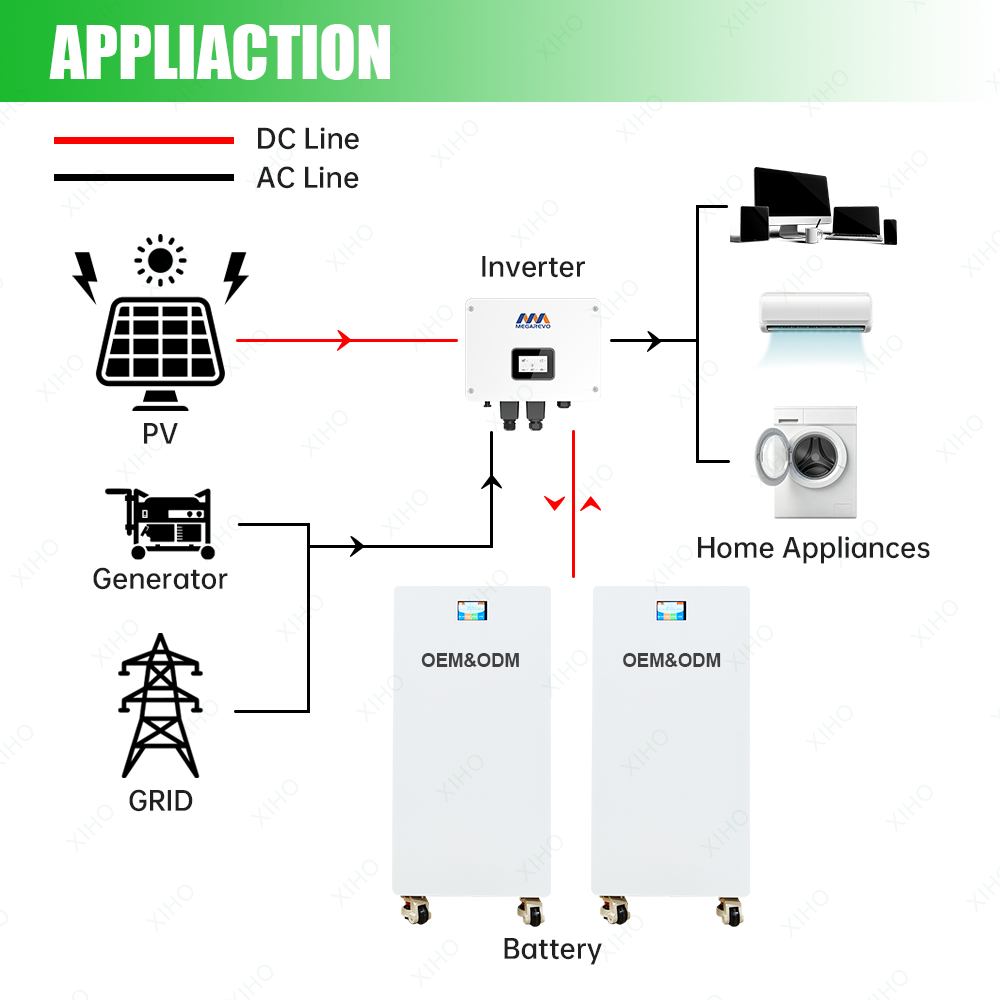

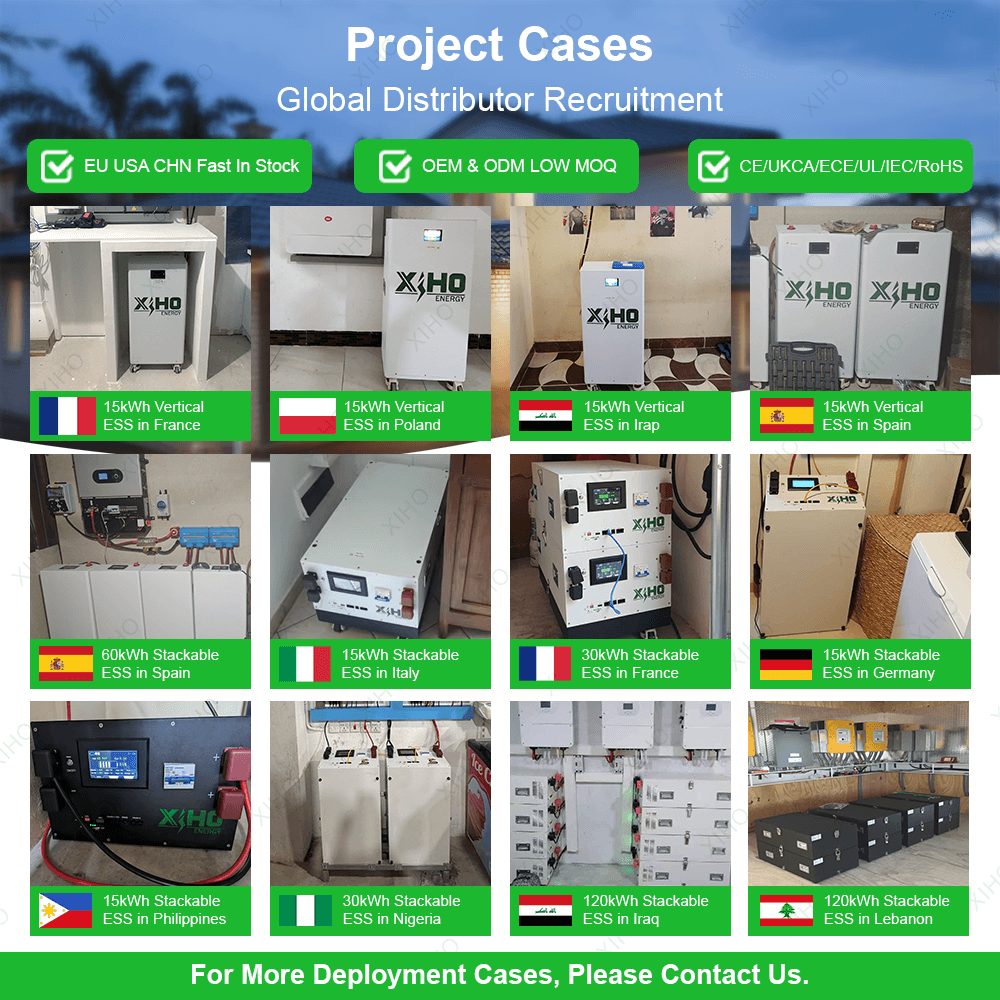

Application Cases
Choosing XIHO means opting for reliability and quality. Here's why we stand out:
Factory: A 7,000-square-meter automated factory featuring 2 fully automated and 4 semi-automated production lines, and an annual production capacity of 2 GWh.
Expertise: Years of experience in the production and manufacturing of new energy lithium ion batteries.
Technology: State-of-the-art equipment for precise and efficient production.
Customer Focus: Committed to delivering exceptional service and support.

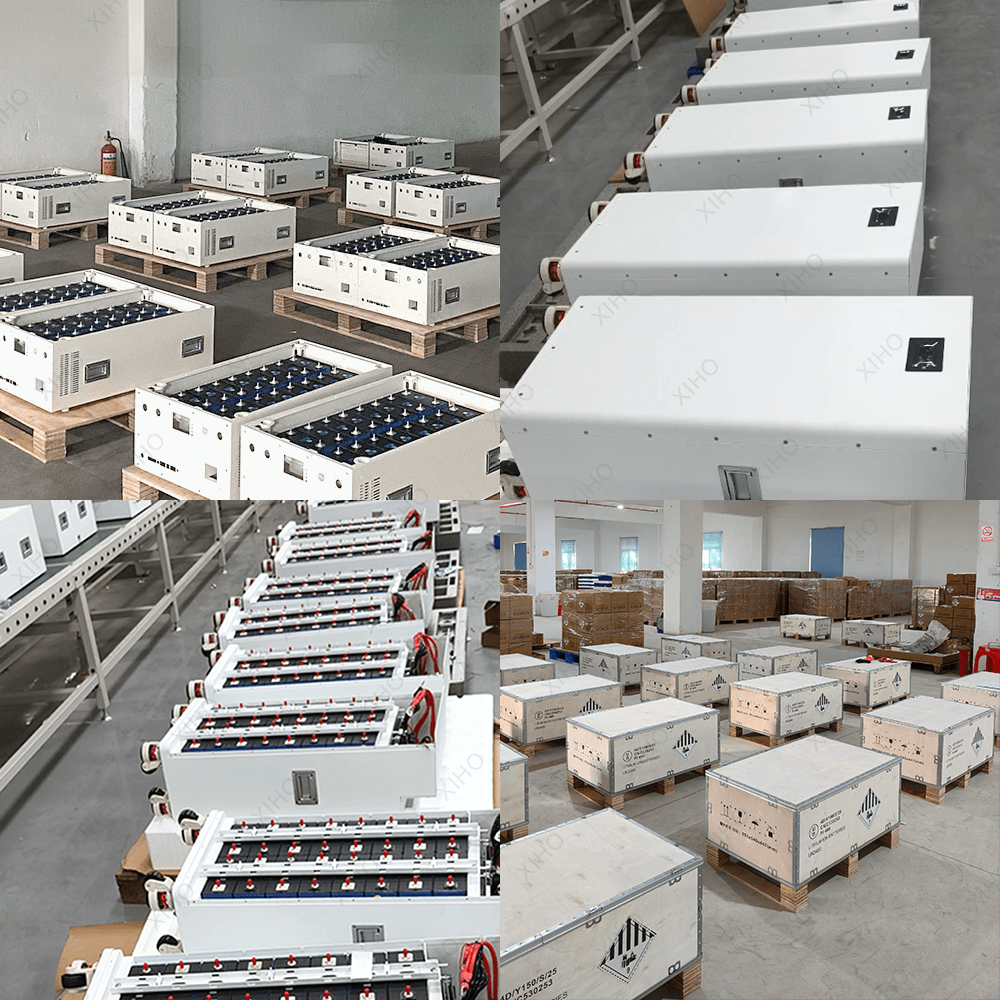

Factory panorama
Professional workshop
Quality Control
Customer Visits
Q&A
Q1:What BMS is in the battery box?
XIHO are Official distributor of JK/ PACE/ JBD brand and Supply other safety DIY Pack accessories together Just show us what kinds of BMS you need.We use the 100/150/200A BMS in the box with CAN/RS485/RS232 Communications.
Q2:Do you provide after-sales serive?
Yes, the warranty is usually 1 years, If you purchase battery cells from our company, the warranty period will be extended to 5 years. If there is broken item under quality problem within warranty time, take the test pictures or video to us,we will replace it or give satisfied solution.
Q3:Can I buy the completed battery pack?
Sure, because our battery box does not include the cells, please leave a message to us if you want the completed battery system.
Q4: I have my own logo, can I print my logo in the battery pack?
Yes,we accept customizing the logo, but need larger quantity(>10 sets), if you need sample first, welcome to contact us.
Q5:Does the DIY kit contain batteries?
Not including battery cells, see above packing list. Alternatively, you can contact our sales team to request the DIY Kits list.
Q6:What should I do if I don't know how to install the battery box after receiving it?
This kit is particularly easy to install and we have a detailed installation video as well as instructions.You can also contact us anytime if need help.
