Brand
JK
Type
PB1A/2A-16S20P/15P/10P
Equalizer Type
Active Balance
Balance Current
1A 2A
Strings
4S/8S/12S/16S,etc
Voltage
12V 24V 48V 51.2V
Communication
CAN/RS485/RS232
Compatible Inverter
GROWATT, DEYE, GOODWE, VOLTRON, MUST,etc
JK-PB Series 16S BMS offers 1A/2A active balancing, ±3mV voltage accuracy, and smart heating. Supports CAN/RS485 communication, ideal for reliable energy storage solutions. Ensure safety and extend battery life.
Items | Parameter |
Manufacturer: | Jk Jikong |
Model No. | PB1A/2A-16S20P/15P/10P |
Equalizer Type: | Active Balancing |
Balance Current: | 1-2A |
Working temperature: | －20～60℃ |
Storage temperature: | －20～75℃ |
Strings: | 4S/8S/12S/16S,etc |
Voltage: | 12V 24V 48V 51.2V |
Bt Function: | APP For Android/IOS Available |
Communication: | CAN/RS485/RS232 |
Usage: | Home energy storage system |
Protection function: | Over Charged/Over Discharged/Over Current and Short Circuit Protection |
Compatible For: | Compatible For A variety of inverter Such as GROWATT, DEYE, GOODWE, VOLTRON, MUST,etc |
Active Balancing (1A/2A)
Utilizes proprietary energy transfer technology to actively balance cells with high currents up to 1A or 2A, reducing voltage differences and extending battery lifespan. Ideal for maintaining consistency in large-capacity LiFePO4 or ternary lithium packs.
High-Precision Monitoring
Features voltage sampling accuracy ≤±3mV and precise current measurement for reliable state-of-charge calculations. Ensures safe operation with full protection against overcharge, over-discharge, and temperature extremes.

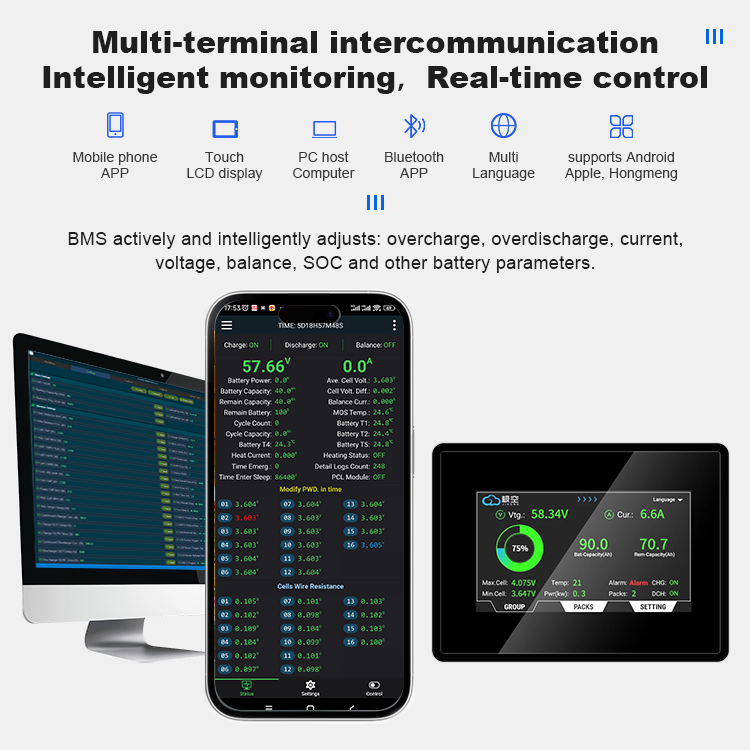

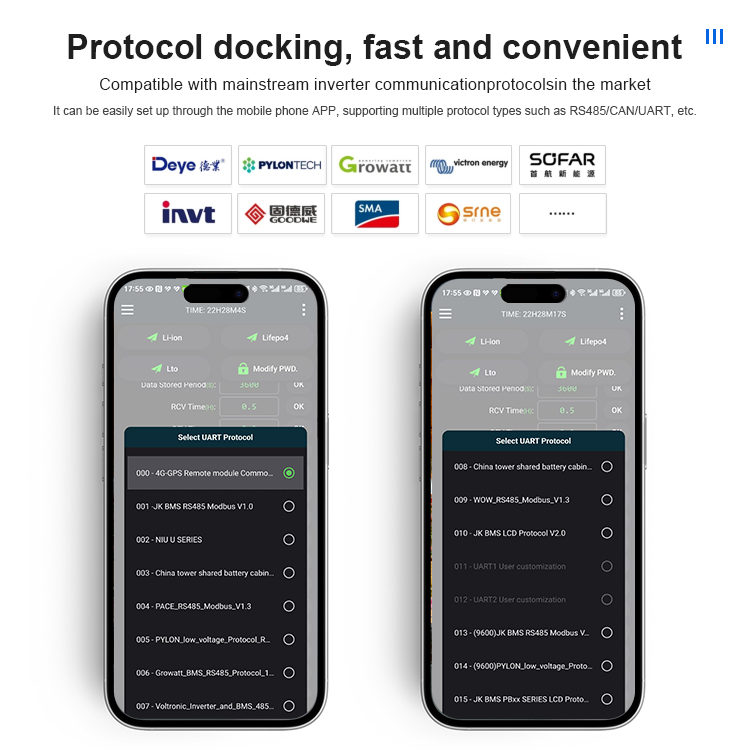

Multi-Communication Support
Integrates CAN, dual RS485 ports, and Bluetooth for flexible integration with inverters and monitoring systems. Supports parallel operation of up to 16 units via RS485-2 with easy address configuration.
Smart Heating & Controls
Includes configurable low-temperature heating (10A) to enable charging in cold environments. Offers mobile app control, emergency override, and intelligent sleep mode for user-friendly operation.
Application Cases
Choosing XIHO means opting for reliability and quality. Here's why we stand out:
Factory: A 7,000-square-meter automated factory featuring 2 fully automated and 4 semi-automated production lines, and an annual production capacity of 2 GWh.
Expertise: Years of experience in the production and manufacturing of new energy lithium ion batteries.
Technology: State-of-the-art equipment for precise and efficient production.
Customer Focus: Committed to delivering exceptional service and support.
Factory panorama
Professional workshop
Quality Control
Customer Visits
Q&A
Q1:What is the maximum active balancing current of the JK-PB Series BMS?
The JK-PB Series BMS supports high-efficiency energy transfer active balancing with a maximum continuous current of 1A or 2A (model-dependent). This technology minimizes voltage differences between cells, ensuring optimal performance and longevity for LiFePO4 or ternary lithium batteries.

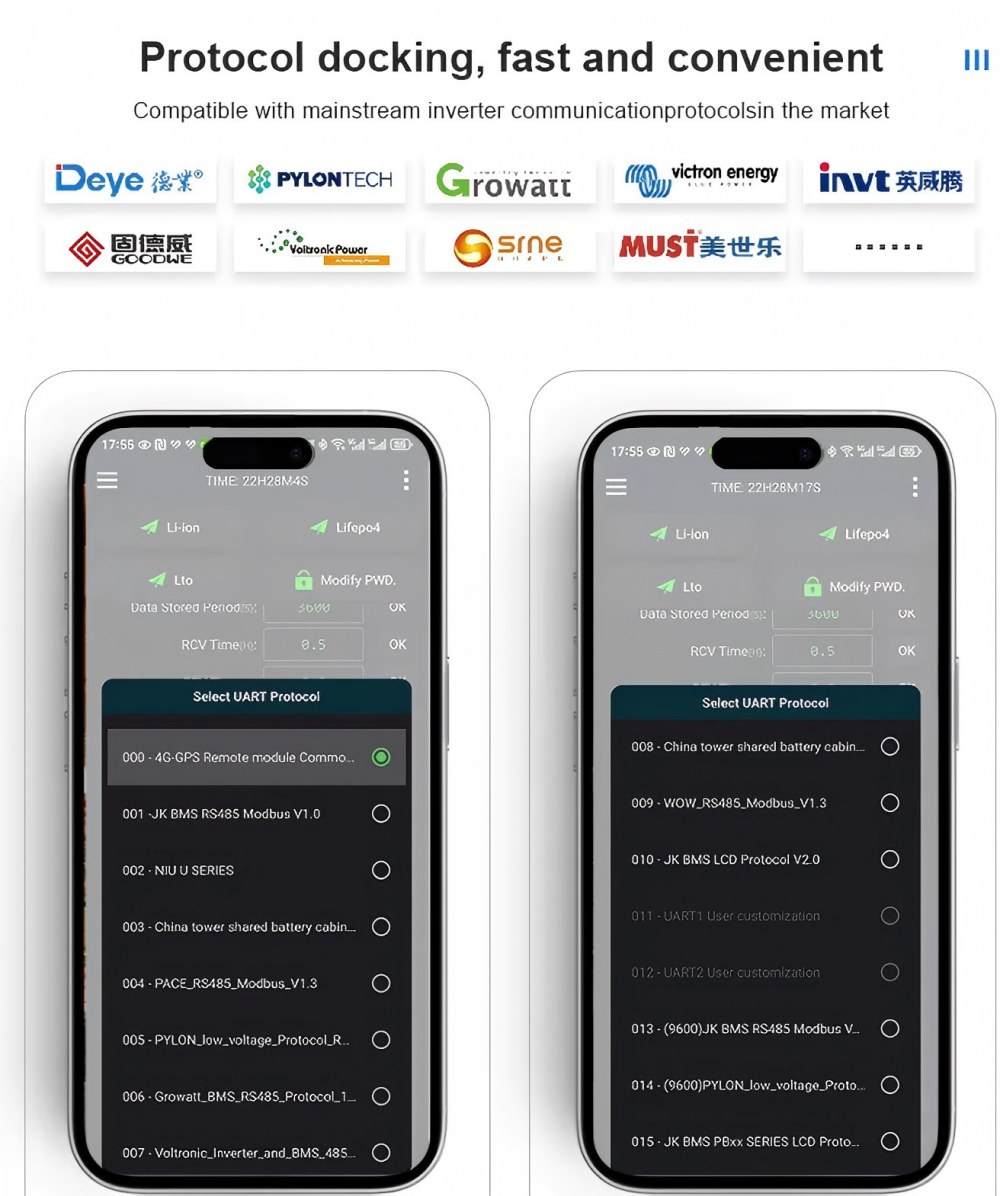

Q2: What communication interfaces does the JK-PB BMS support for inverter integration?
It supports CAN communication (default 250kbps) and dual RS485 ports. RS485-1 connects to inverters, while RS485-2 enables parallel operation of up to 16 BMS units. Addresses are set via a DIP switch for seamless scalability.
Q3: How accurate is the voltage monitoring of this BMS?
The BMS delivers industry-leading voltage sampling accuracy of ≤±3mV, ensuring precise state-of-charge calculations and reliable overcharge/over-discharge protection for enhanced safety.
Q4:Can the BMS operate in low-temperature environments?
Yes, it includes a low-temperature heating function (10A design) to maintain charging capability in cold conditions. A temperature control switch (45–65°C) is recommended as secondary protection.
Q5:How do I set up multiple BMS units in parallel?
Use the RS485-2 interface and configure unique addresses (0–15) via the DIP switch.
The host (address 0) communicates with the upper software, while slaves (addresses 1–15) sync data for centralized monitoring.
Q6:What smart features does the JK-PB BMS offer?
It supports Bluetooth mobile app control (Android/iOS), intelligent sleep mode (auto-activates after 26 hours idle), and an emergency switch for 30-minute override during faults.
