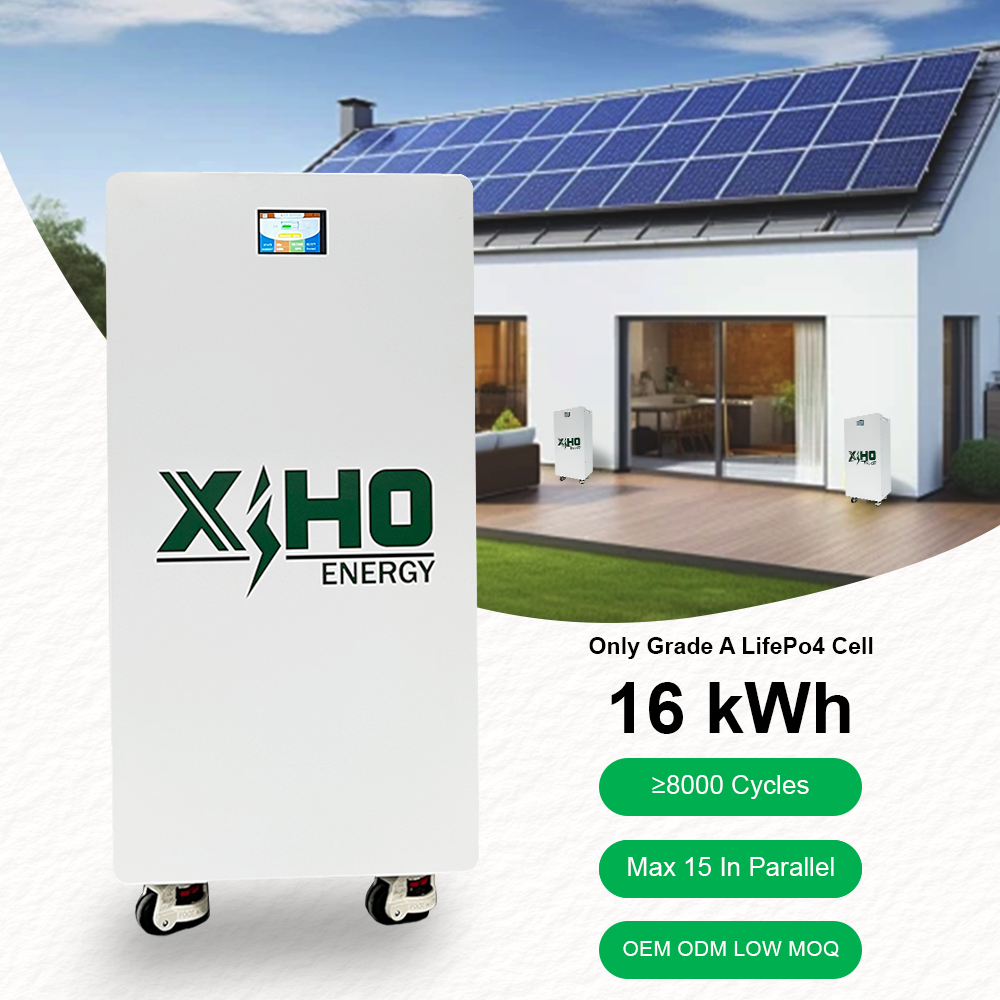

XIHO 16kWh Floor-Standing Home Energy Storage LifePo4 Solar Battery Pack Lithium Ion Battery Manufacturers

Brand

XIHO

Type

Vertical Energy Storage Battery Pack

Energy Storage

16kWh

BMS

PACE 16S 200A BMS

Color

White

Dimensions

450mm*253mm*938mm

Cells Inside

Gade A LFP Cells

Compatible Inverter

GROWATT, DEYE, SMA, SOLIS, VOLTRON, GOODWE, etc

+86 13332949210

info@xihobattery.com

Add to lnquiry

See Price

XIHO Factory OEM ODM 51.2V 314Ah 16kWh Vertical Home Solar Battery Energy Storage Solution

XIHO Factory offers professional OEM/ODM services for this 51.2V 314Ah vertical home battery. With a compact vertical design and a 16kWh capacity per unit, it excels in scalability, supporting the parallel connection of up to 15 units for a massive total capacity of 240kWh to meet diverse household energy demands.

Items	Parameter
Manufacturer	XIHO
Model No.	XH-V16
BMS	PACE 16S 200A BMS
Nominal Voltage	51.2V
Nominal Capacity	314Ah
Total Energy	16kWh
Battery Cells	Grade A LFP Cells
Maximum Continuous Charge Current	150A
Maximum Continuous Discharge Current	200A
Charge Cut-off Protect Voltage	57.6V
Disharge Cut-off Protect Voltage	43.2V
Communication Port	RS485, RS232, CAN
Parallel Connection	Max 15 Units in Parallels
Series Connection	No
Cycle life	8000 Times

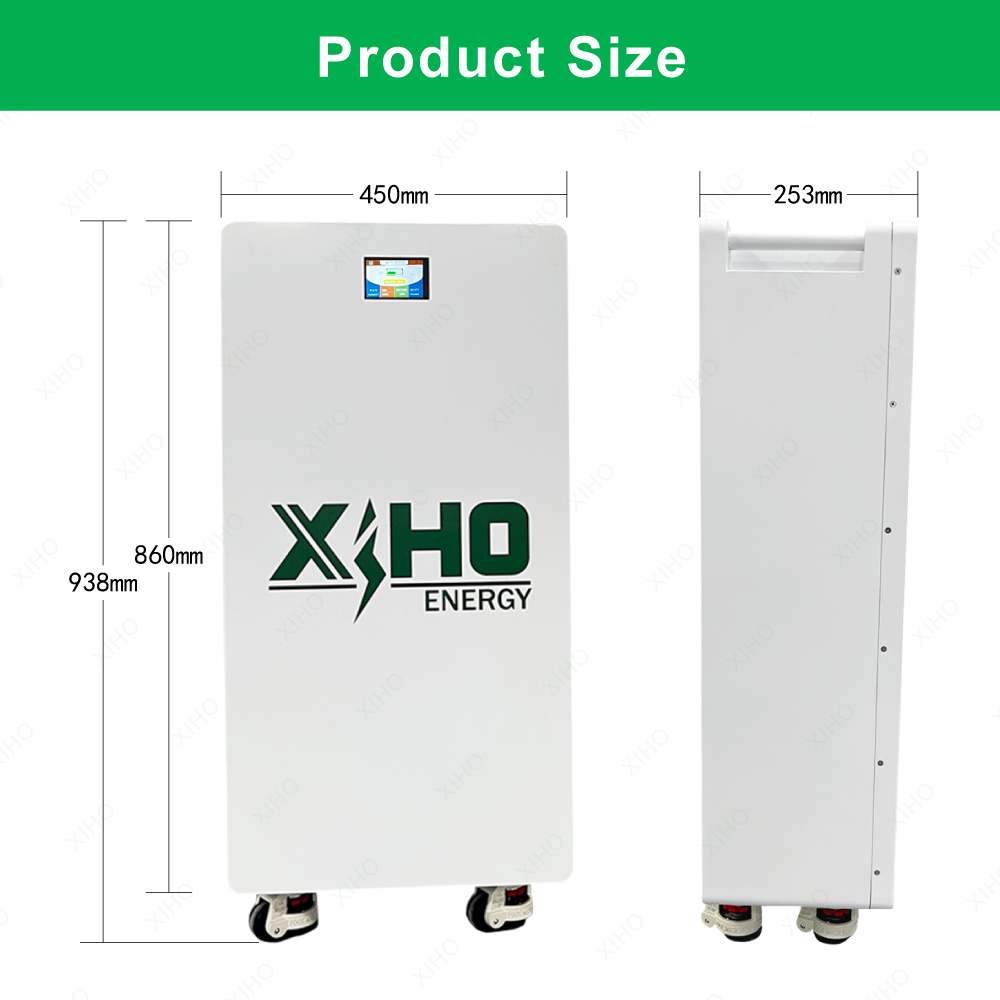

Size	L450mmW253mmH938mm(mm)
Weight	120kg
Configuration	16S1P
Charge Temperature (℃)	0°C~45°C
Discharge Temperature (℃)	-10°C~60°C
Certification	CE,UL,UN38.3,MSDS
Compatible Inverter	GROWATT,DEYE,VOLTRON,LUXPOWER,SMA,PYLON,SOLIS,SE,etc

Key Features

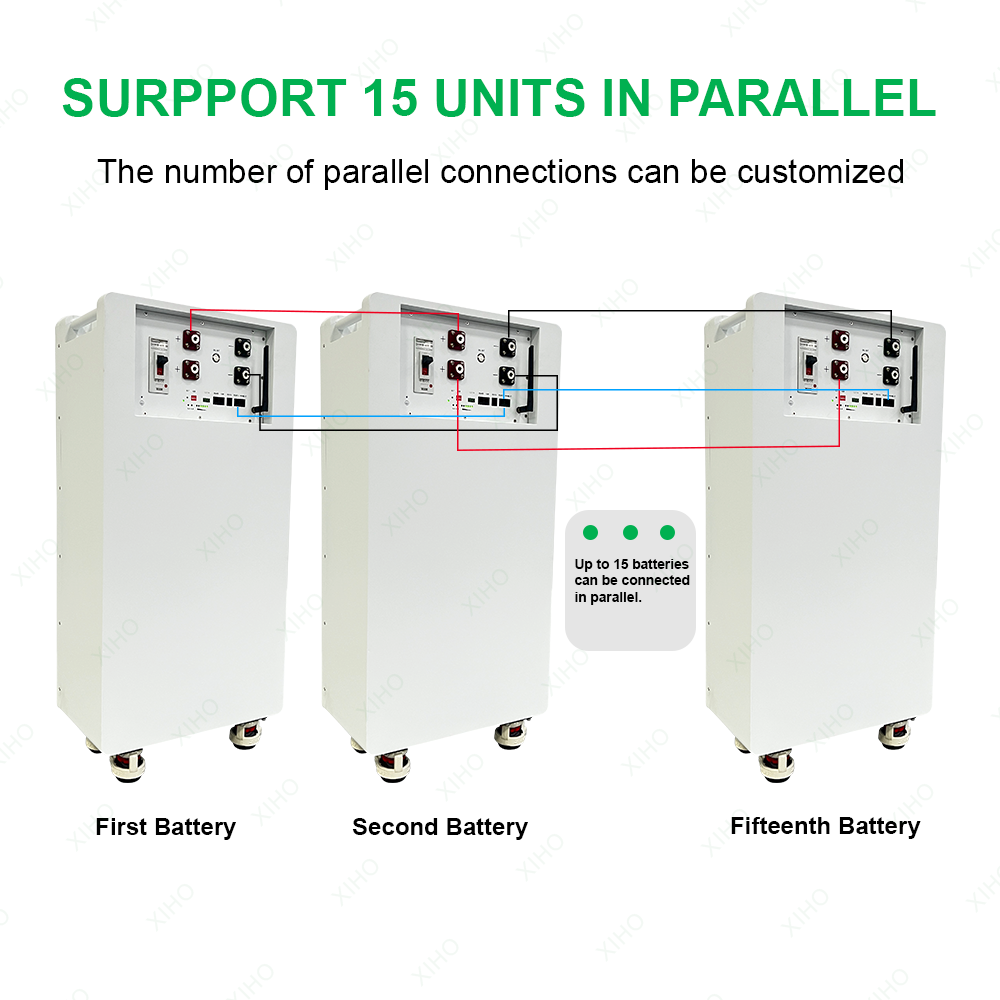

Massive Scalability

Connect up to 15 batteries in parallel to create a massive 240kWh energy reserve, perfectly adapting to your growing power needs.

Compact Vertical Design

Engineered with a space-saving vertical form factor, it optimizes your storage area without compromising on its substantial 16kWh capacity per unit.

Superior Voltage Stability

Delivers consistent power output with minimal voltage drop during discharge and stable charging voltage, ensuring efficiency and protecting your connected appliances.

OEM/ODM Flexibility

As a professional manufacturer, we offer complete customization (OEM/ODM) to tailor the battery's specifications, branding, and features to your specific market requirements.

XIHO 16kWh Floor-Standing Home Energy Storage

XIHO PRODUCT DETAILS

Grade A LifePo4 Battery Cells

Long Cycle Life & Grade A Cells

①Features Grade A batteries with ≥8000 cycles.
②Each cell undergoes rigorous voltage, capacity & IR testing.

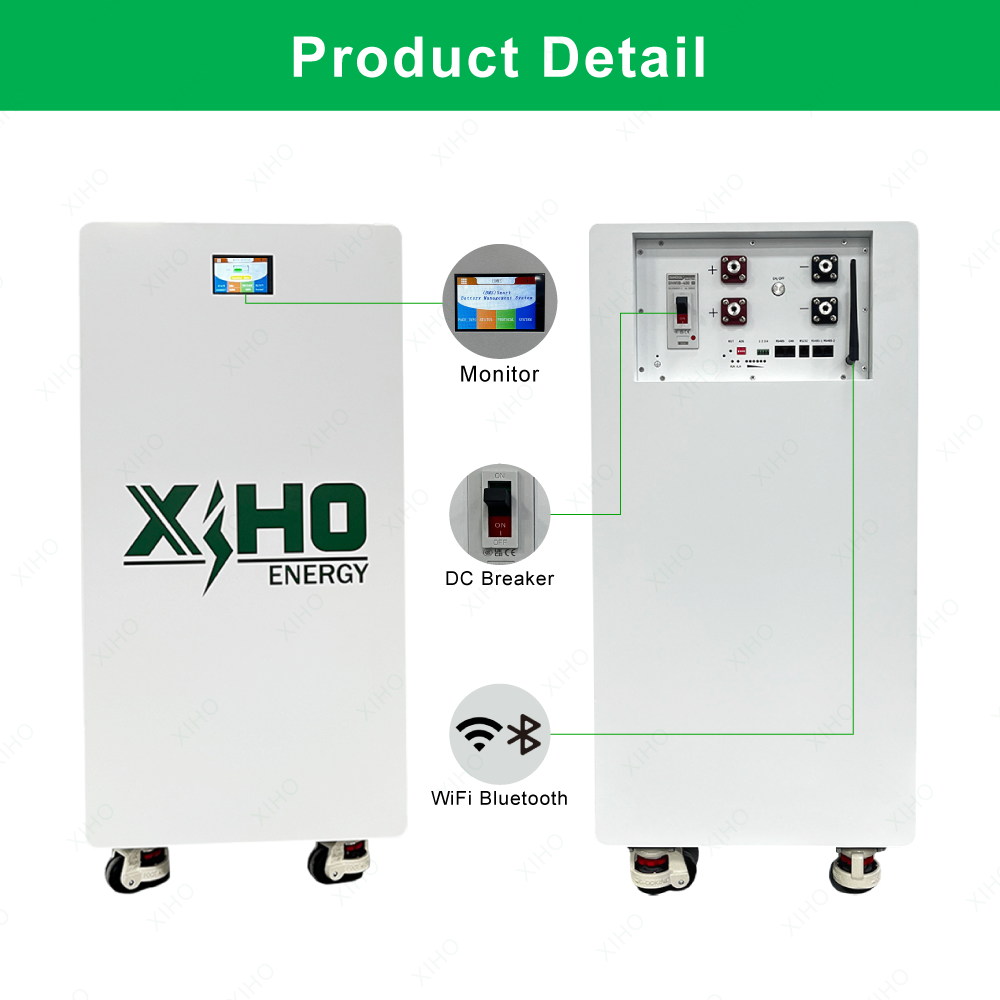

Smart BMS with High Compatibility

①compatible with 95% of inverter brands.
②Low failure rate <0.3% ensures reliable performance.

16kWh Vertical Battery Pack

Simplified Vertical Design

①Space-saving vertical structure for easy installation.
②Sturdy safety casing with support for 15 units in parallel.

XIHO VERTICAL HOME ENERGY STORAGE BATTERY

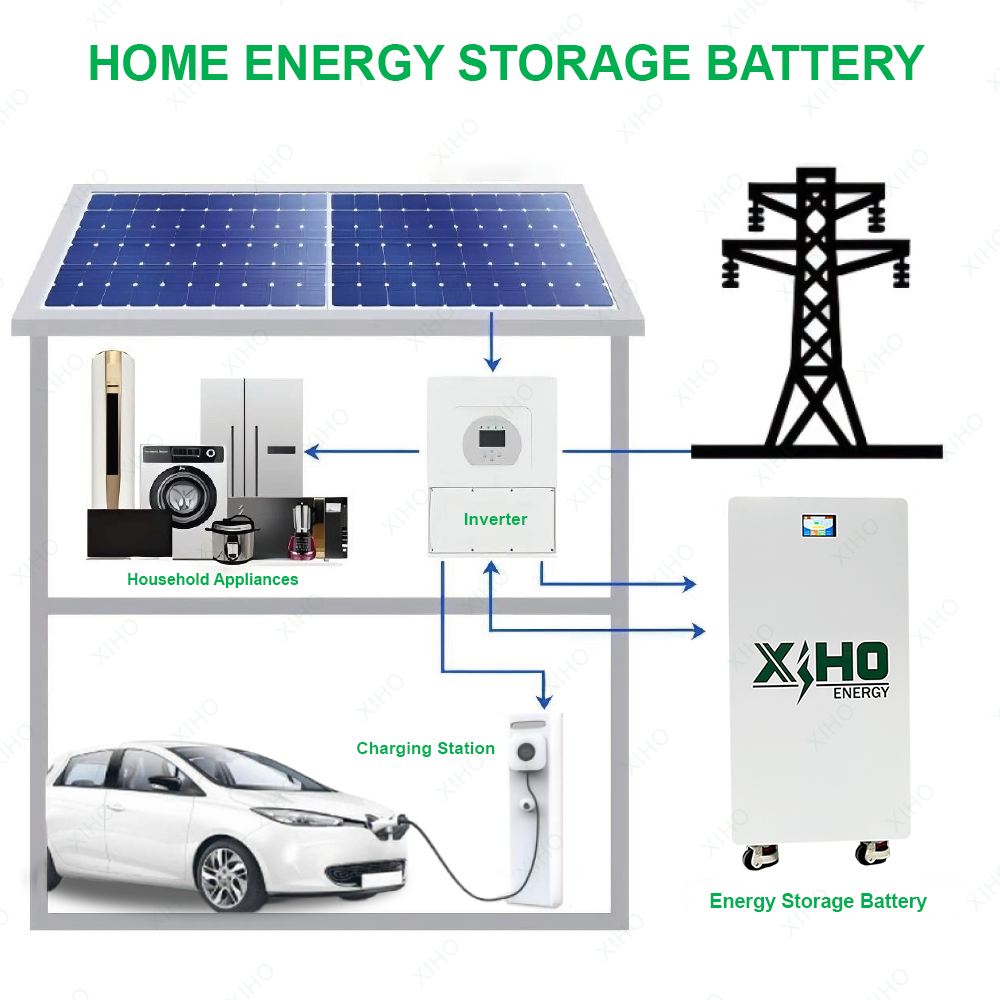

XIHO 16kWh LiFePO4 Battery Pack offers flexible OEM/ODM customization and supports up to 240kWh. Equipped with Wi-Fi, Bluetooth, and PC monitoring, it enables intelligent energy management. With high safety, a long cycle life of over 8,000 cycles, and compatibility with solar systems, it is ideal for residential, commercial, and off-grid applications..

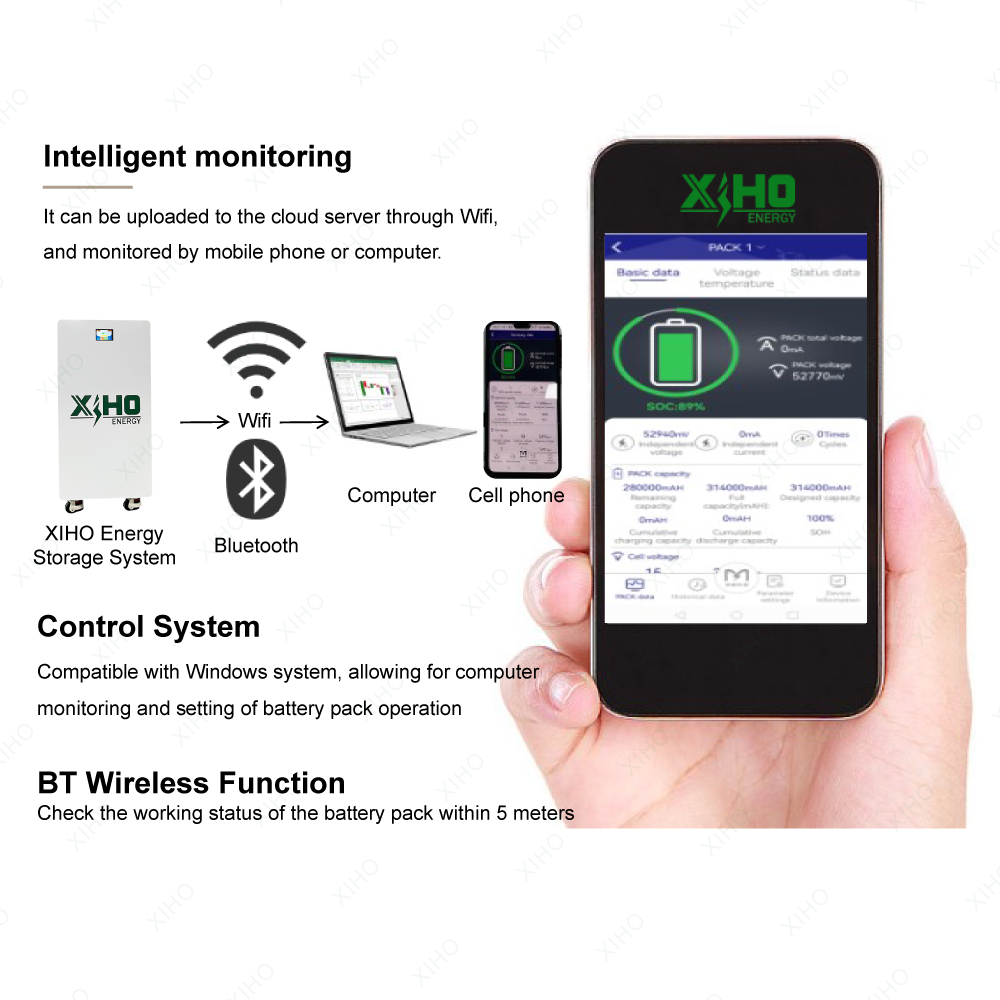

Home energy storage battery Systems Wifi Bluetooth

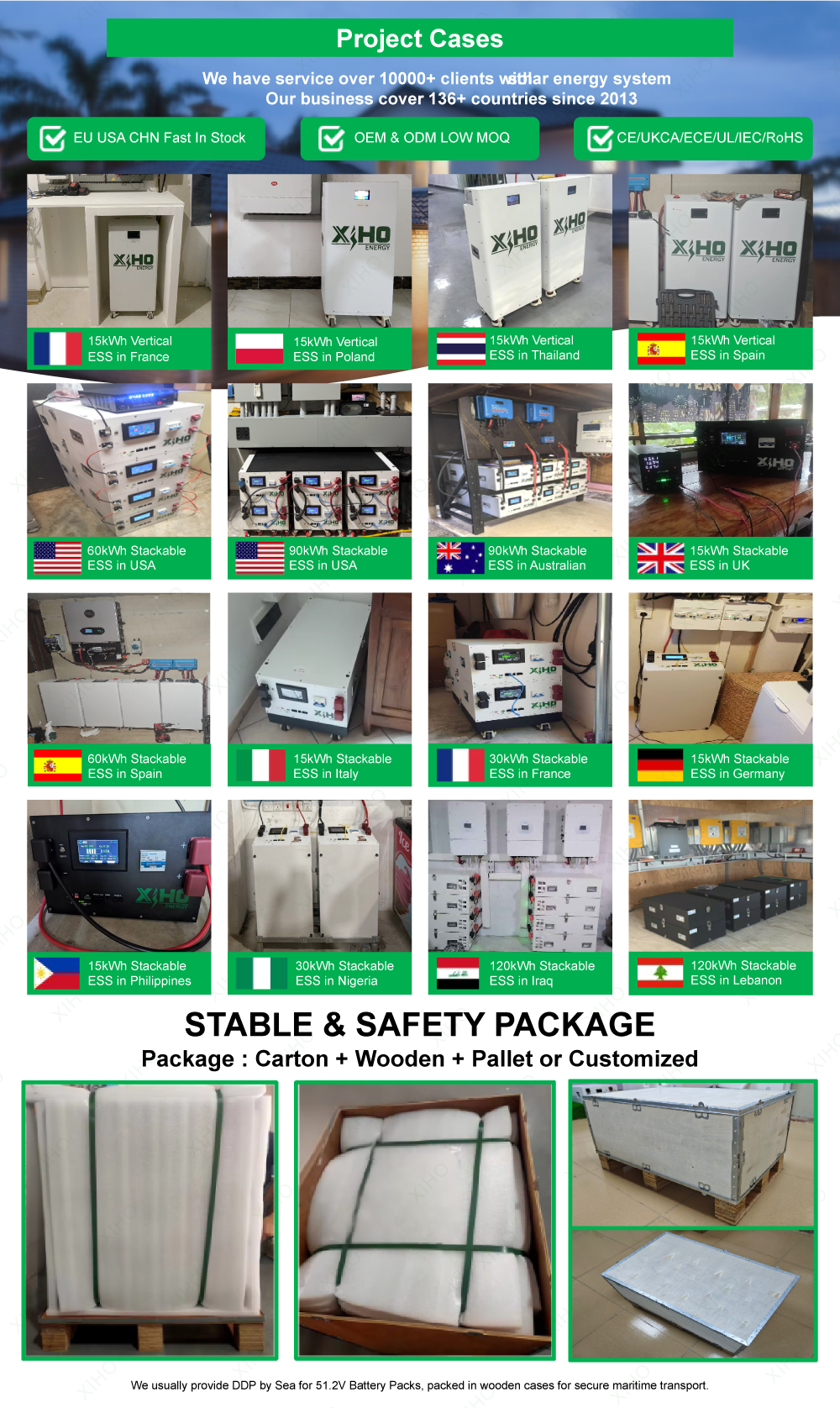

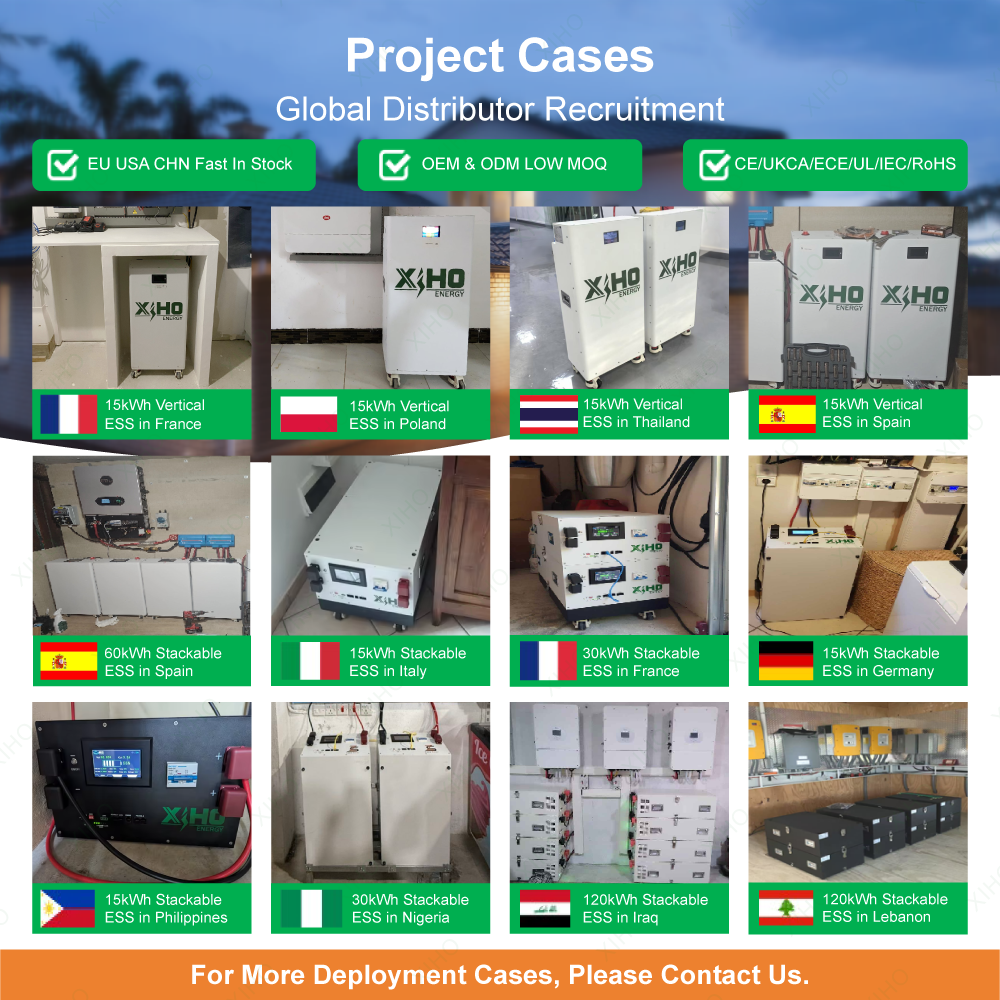

Application Cases

Customer Testimonials：
"This system has eliminated our dependency on the unstable grid. The reliability is unmatched, and we've cut our energy costs significantly. A must-have for any small business." – David K., Auto Repair Shop Owner

"Living in a mountainous area, power cuts were frequent. This 16kWh battery has provided unwavering power for our home. The setup was straightforward, and it handles our needs from day to night seamlessly." – The Miller Family, Remote Residents

"The granular data and analytics provided through the app are impressive. We can track energy flow in real-time and optimize our consumption. The system's integration with smart home devices is a fantastic bonus." – Eva T., Home Tech Enthusiast

"After 18 months of extreme weather conditions, from intense heat to freezing winters, the performance remains as strong as day one. The efficiency hasn't dropped a bit, proving its exceptional build and design." – Mr. Chen, Agri-Tourism Site Manager

Customization Options

We understand that every project is unique. At XIHO, we offer extensive customization options to meet your specific needs:
Material Selection: Choose from a range of materials for optimal performance.
Design Assistance: Expert design support from concept to production.
OEM&ODM：Customize Color, Customize Logo, Customize Energy.

Why Choose US?

Choosing XIHO means opting for reliability and quality. Here's why we stand out:
Factory: A 7,000-square-meter automated factory featuring 2 fully automated and 4 semi-automated production lines, and an annual production capacity of 2 GWh.
Expertise: Years of experience in the production and manufacturing of new energy lithium ion batteries.
Technology: State-of-the-art equipment for precise and efficient production.
Customer Focus: Committed to delivering exceptional service and support.

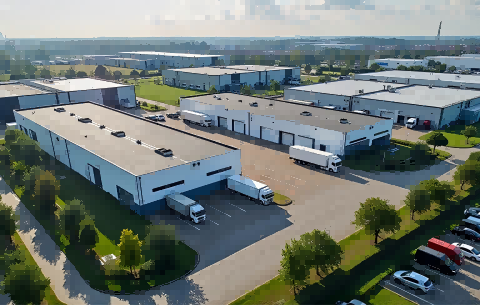

factory panorama

Factory panorama

professional workshop

Professional workshop

inventory display

Quality Control

team strength

Customer Visits

IEC 62619

RoHS

Q&A

CNC Aluminum Drone Parts

Q1:Can I have samples to test? And what is lead time for sample order?

Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.

CNC Aluminum Drone Parts

Q2:Do you provide after-sales serive?

Yes, the warranty is usually 5 years, increase the cost to 10-15 years. if there is broken item under quality problem within warranty time, take the test pictures or video to us,we will replace it or give satisfied solution.

CNC Aluminum Drone Parts

Q3:Do you accept OEM/ODM?

Yes, it is avaliable.

CNC Aluminum Drone Parts

Q4:What information do you need to make a customized battery pack?

We need the details below:
① Size of the battery pack you need in mm.
② Capacity of the Battery pack.
③ Voltage of the battery pack.
④ Max discharge current.
⑤ Cable and connector types you need.
⑥ Casing and Terminals if required.
⑦ Any protection circuits you may need.

CNC Aluminum Drone Parts

Q5:Are you battery real capacity?

All of our battery cells with Grade A, 100% new and real capacity.

CNC Aluminum Drone Parts

Q6:Are you a factory or a trading company?

We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
