Rept 3.2V 100Ah 3000 Cycles Grade A Lifepo4 Prismatic Cells From Solar Energy Lithium-ion Battery Manufacturers

Brand

Rept

Type

Lifepo4 Prismatic Cell

Capacity

100Ah

Dimensions

T52.3*W148.4*H119(mm)

Weight

1.87kg

Operating Voltage

2.5-3.65V

Discharge Temperature

-30°C~55°C

Certification

CE,UL,UN38.3,MSDS

+86 13332949210

info@xihobattery.com

Add to lnquiry

See Price

Xiho Rept 3.2V 100Ah Long Cycle Life Grade A lifepo4 Prismatic Cells Lithium Cells For Golf Carts

The nominal voltage of a single LiFePO4 battery is 3.2V 100 Ah 51.2 V LiFePO4 battery consists of 16 cell connected in series. Lithium Iron Phosphate batteries are the safest of the mainstream lithium battery types.LFP is the preferred chemistry for very demanding applications.

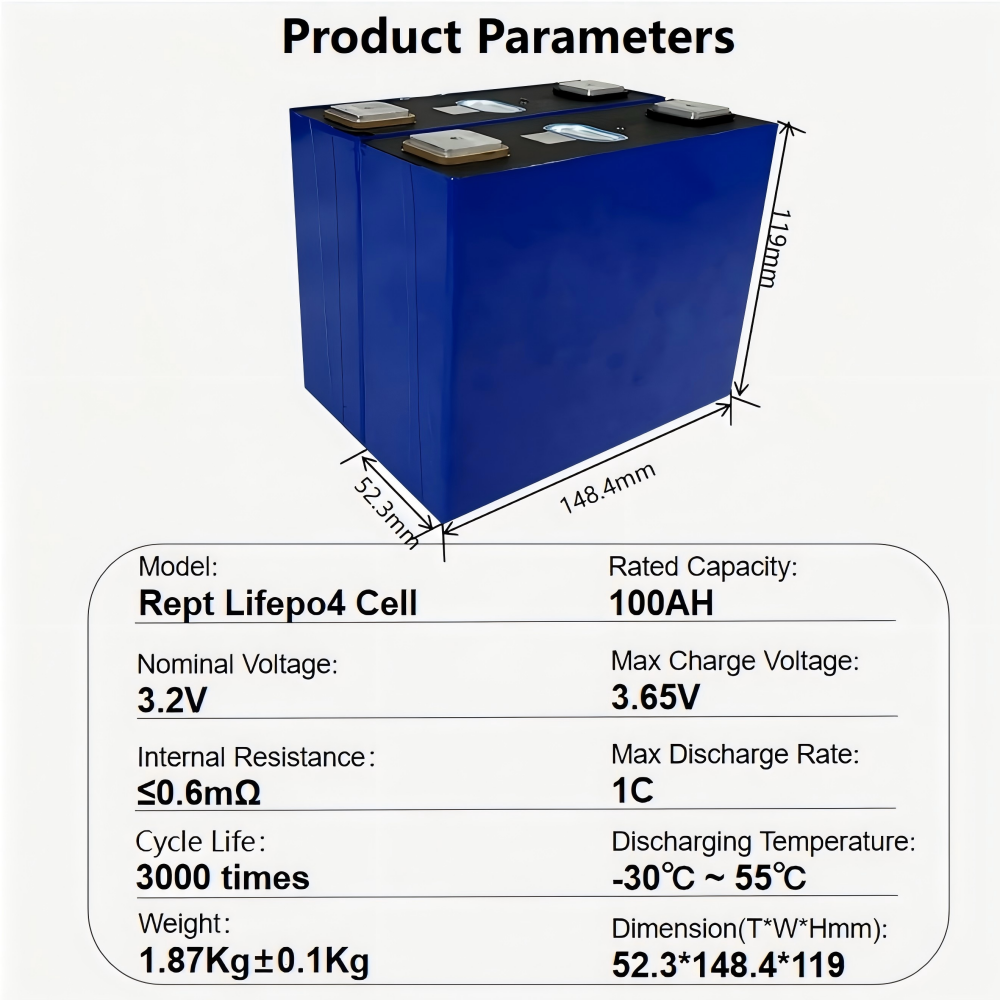

Items	Parameter
Manufacturer	Rept
Model No.	LF100LA
Nominal Voltage	3.2V
Charge Cut-off Voltage	3.65V
Discharge Cut-off Voltage	2.5V
Typical Capcity	100Ah
Electric Energy	320Wh
Internal Resistance	≤0.6mΩ
Cycle Life	≥6000 Times
Internal Resistance	≤0.6mΩ
Max Charge rate	1C
Max Discharge rate	1C
Charging Working Temperature	0°C~55°C
Discharging Working Temperature	-30°C~55°C
Cell Dimension	T53.2W148.4H119(mm)
Cell Weight	1.87kg
Certification	CE,UL,UN38.3,MSDS

Key Features

Max Discharge 1C

Supports high discharge rates up to 1C, ensuring optimal performance during high-demand Applications.

Original QR Code

Each unit comes with a unique QR code for easy verification of authenticity and product tracking.

100% Capacity Test

Fully tested for capacity to ensure reliable performance and meet expected energy output standards.

Customized Accessories

Enhance your system with personalized, high-quality accessories designed for seamless integration and optimal performance.

3.2V 100Ah

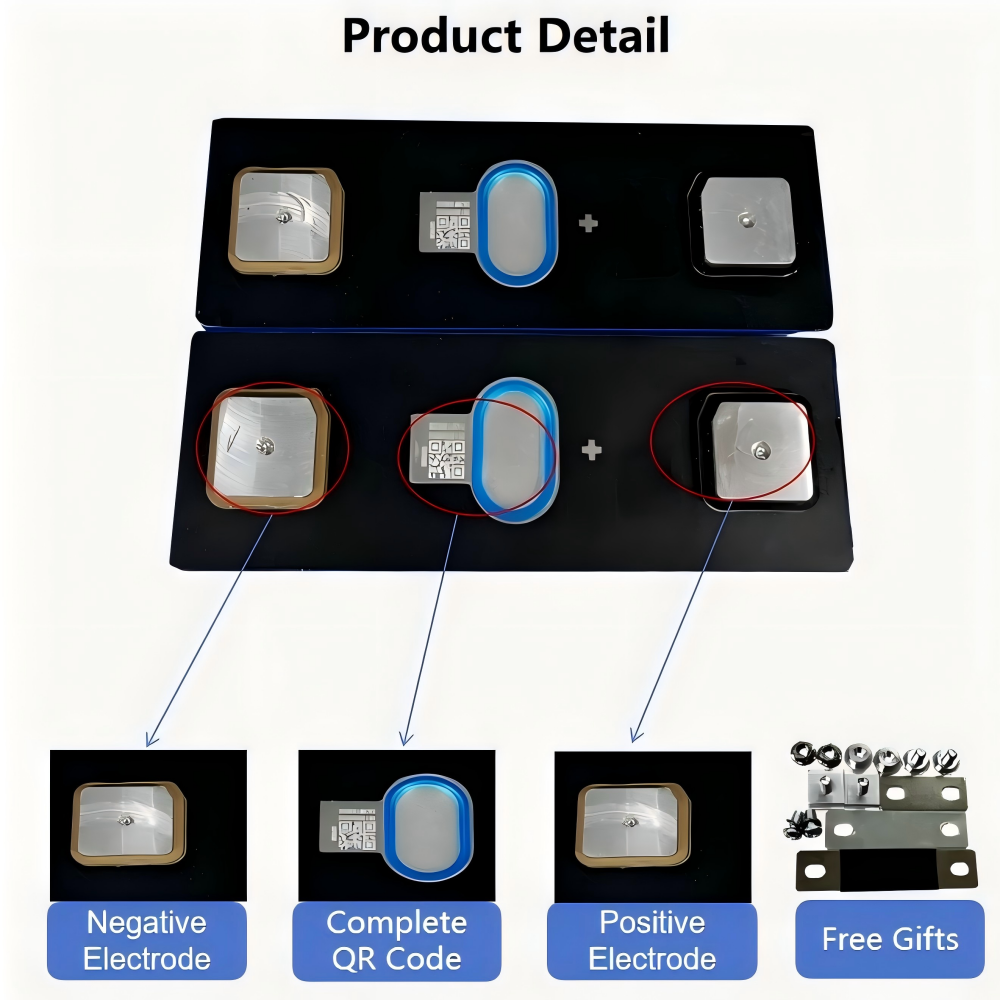

XIHO PRODUCT DETAILS

Lithium-ion Battery

Smooth and Seamless Appearance:

The battery cells feature a flawless design, ensuring both aesthetic appeal and high-quality construction.

Original QR Code

Original QR Code:

Each battery is equipped with a visible, scannable QR code for easy authentication and traceability.

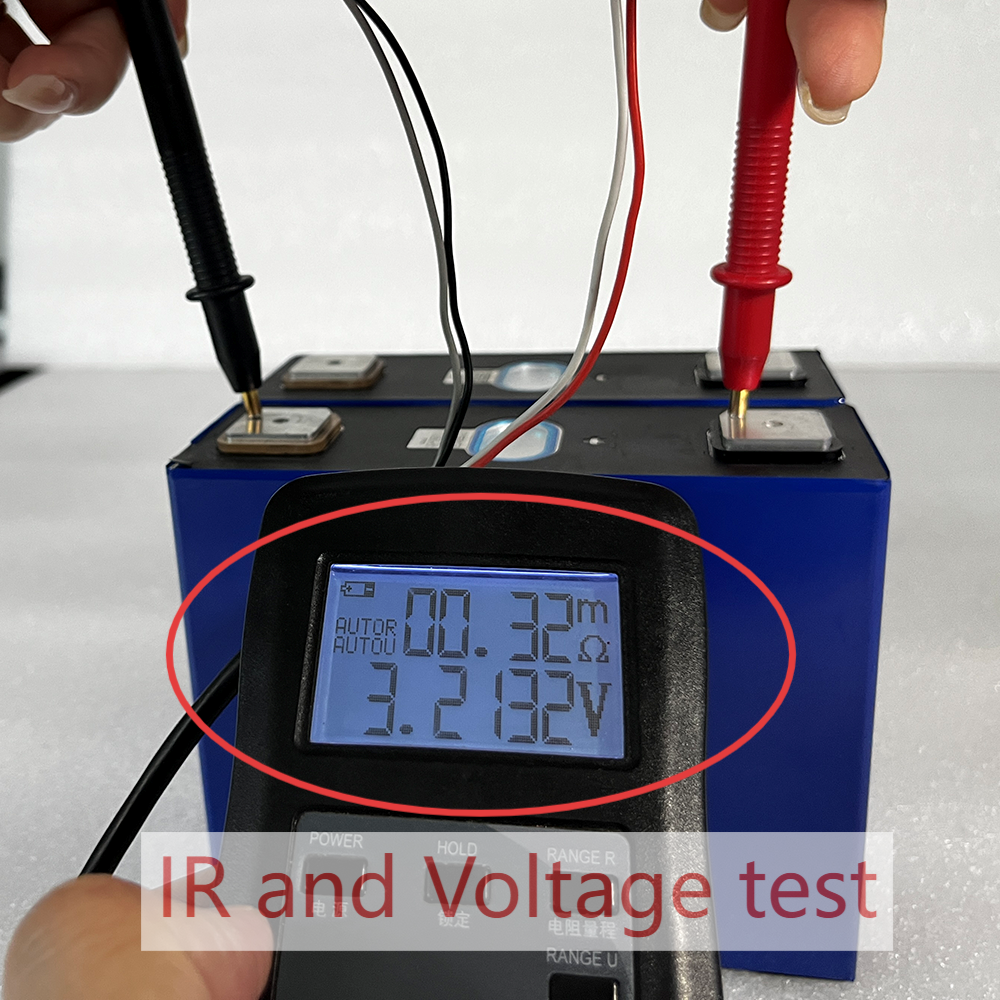

Rigorous Selection Process

Rigorous Selection Process:

Every battery undergoes a thorough voltage and internal resistance test, ensuring only high-quality cells are used.

Application Cases

Solar Energy Panels

Fully equipped facilities

Shenzhen Xiho Energy Technology Co., Ltd. dedicated to delivering high-performance energy storage systems for industries and households worldwide. With over 10+ years of expertise, we combine cutting-edge innovation, state-of-the-art facilities, and a customer-centric approach to meet the evolving demands of 100+ countries.

Factory panorama
