Brand
PACE
Type
P16S200A
Equalizer Type
Passive Balancing
Balance Current
1A 2A
Strings
4S/8S/12S/16S,etc
Voltage
12V 12.8V 24V 48V 51.2V
Communication
CAN/RS485/RS232
Compatible Inverter
GROWATT, DEYE, SMA, SOLIS, VOLTRON, GOODWE, etc

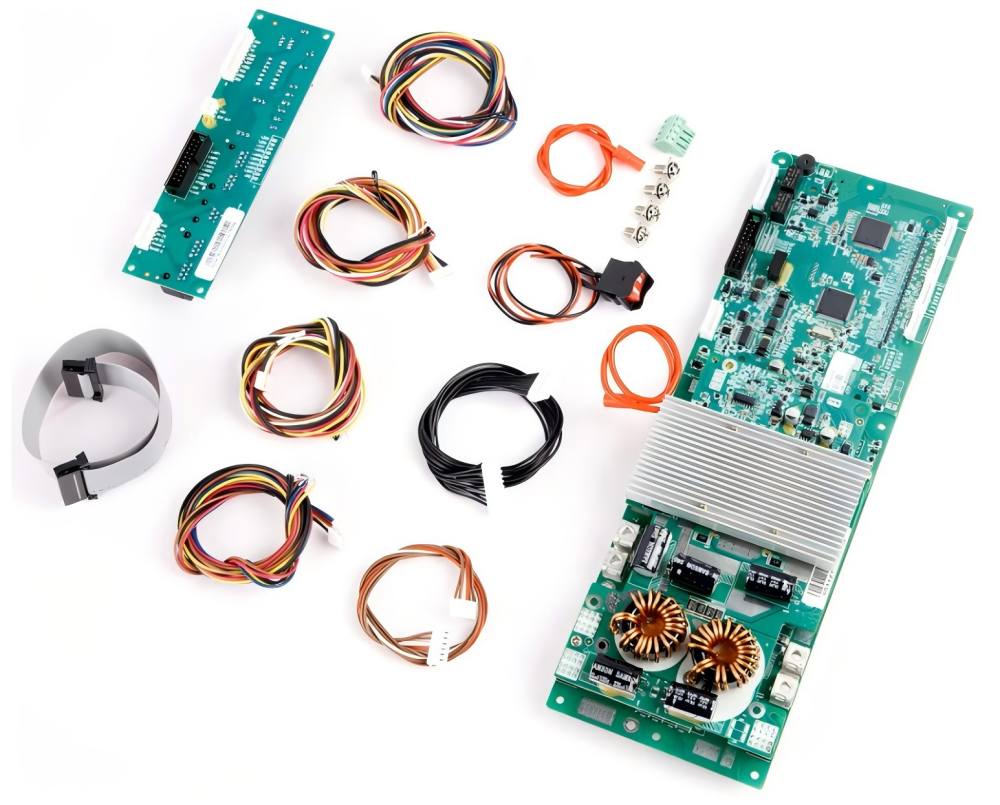

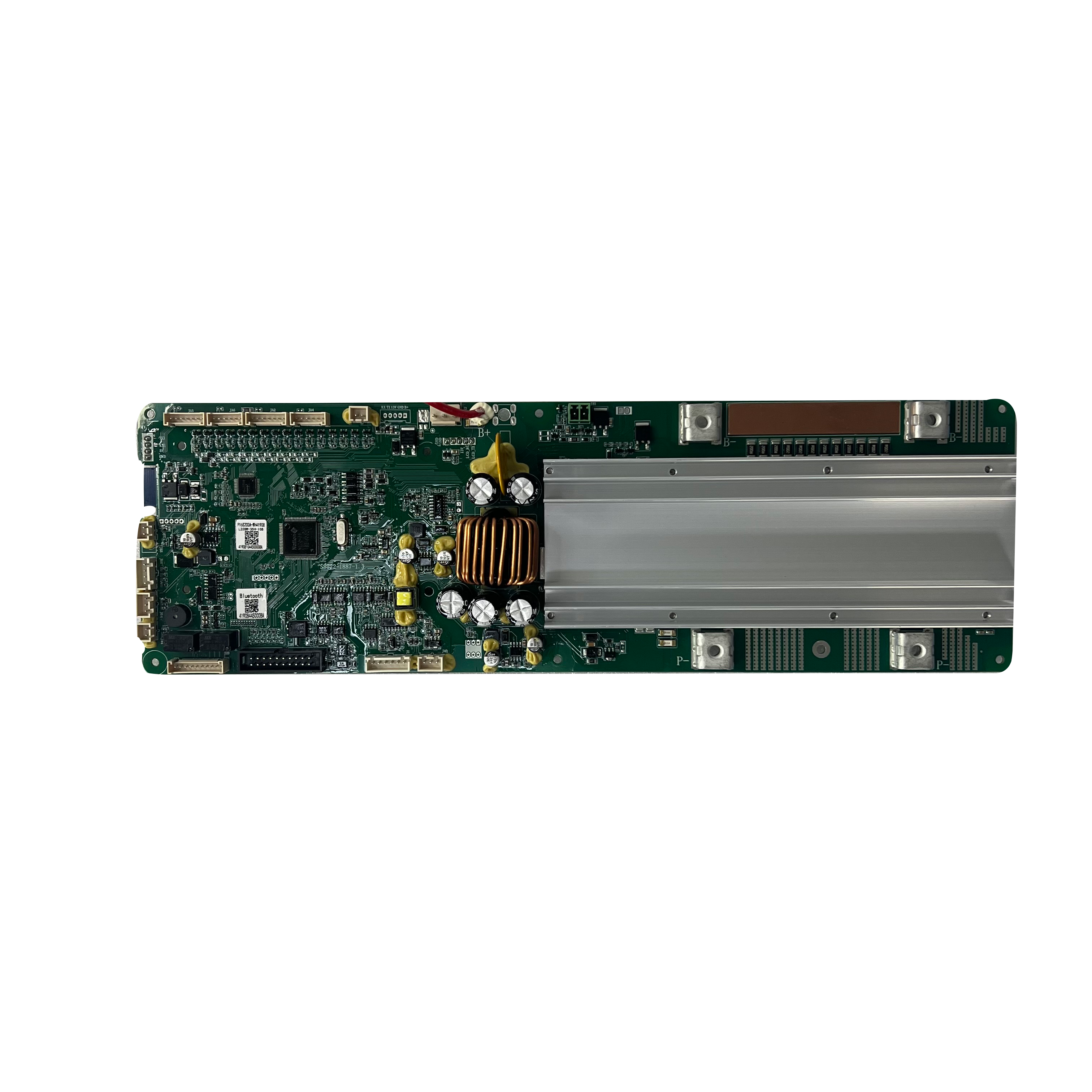

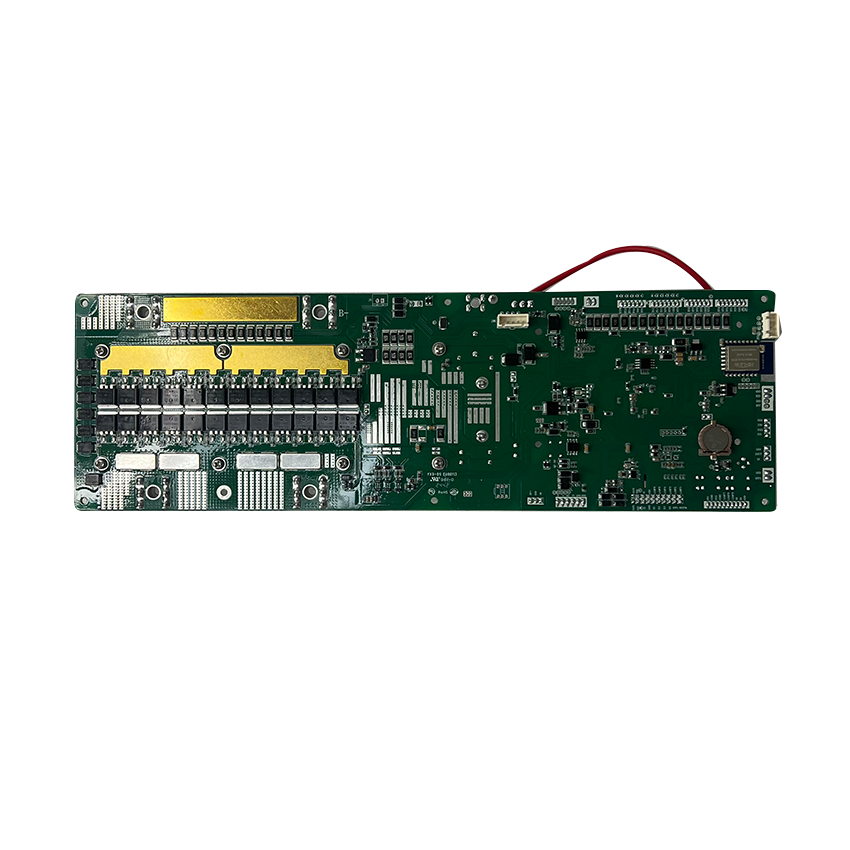

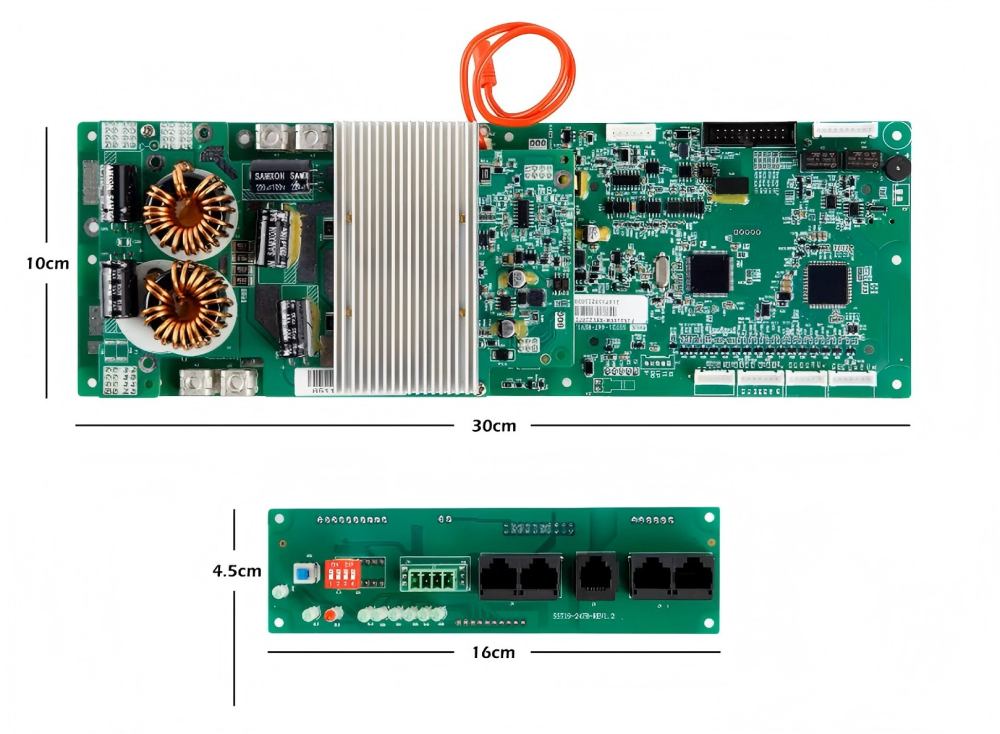

Advanced PACE BMS for custom 24V/48V 51.2V Lifepo4 packs. Offers 100A-300A options, superior protection & smart features. Ideal for reliable home energy storage. DIY & professional use.
Items | Parameter |
Manufacturer: | PACE |
Model No. | P16S200A |
Equalizer Type: | Passive Balancing |
Balance Current: | 1-2A |
Working temperature: | －20～60℃ |
Storage temperature: | －20～75℃ |
Strings: | 4S/8S/12S/16S,etc |
Voltage: | 12V 24V 48V 51.2V |
Bt Function: | APP For Android/IOS Available |
Communication: | CAN/RS485/RS232 |
Usage: | Home energy storage system |
Protection function: | Over Charged/Over Discharged/Over Current and Short Circuit Protection |
Compatible For: | Compatible For A variety of inverter Such as GROWATT,DEYE,etc |
High Precision & Comprehensive Protection
Ensures safety and longevity with high-accuracy monitoring (voltage ≤±10mV, current ≤±2%) and robust protection against overcharge, over-discharge, overcurrent, short circuit, and extreme temperatures.
Flexible Communication & Parallel Operation

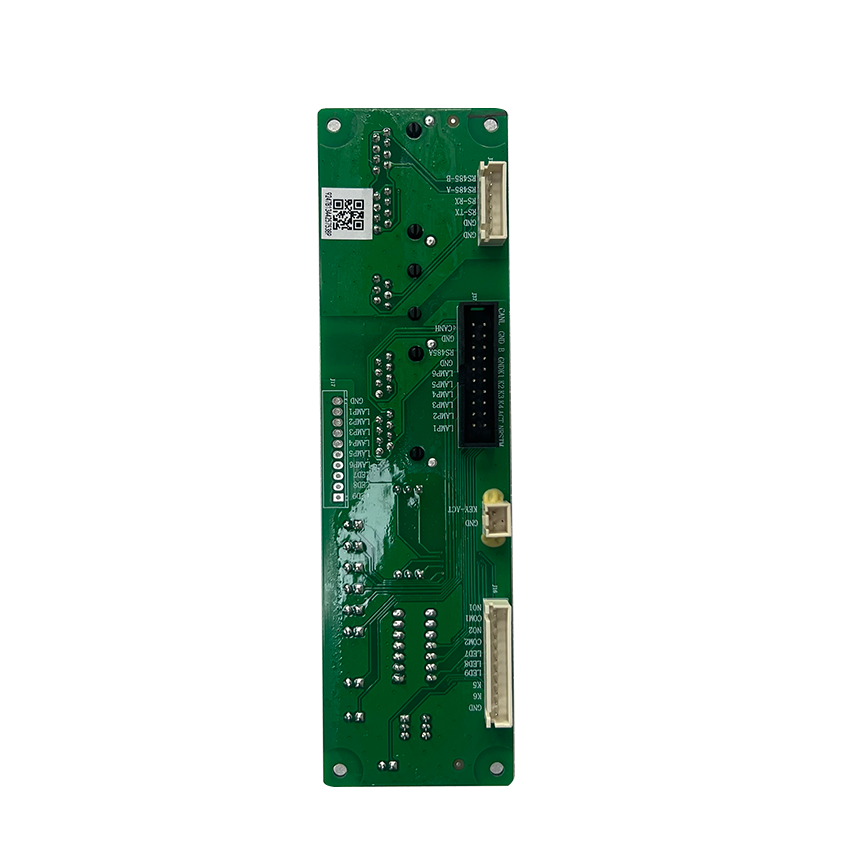

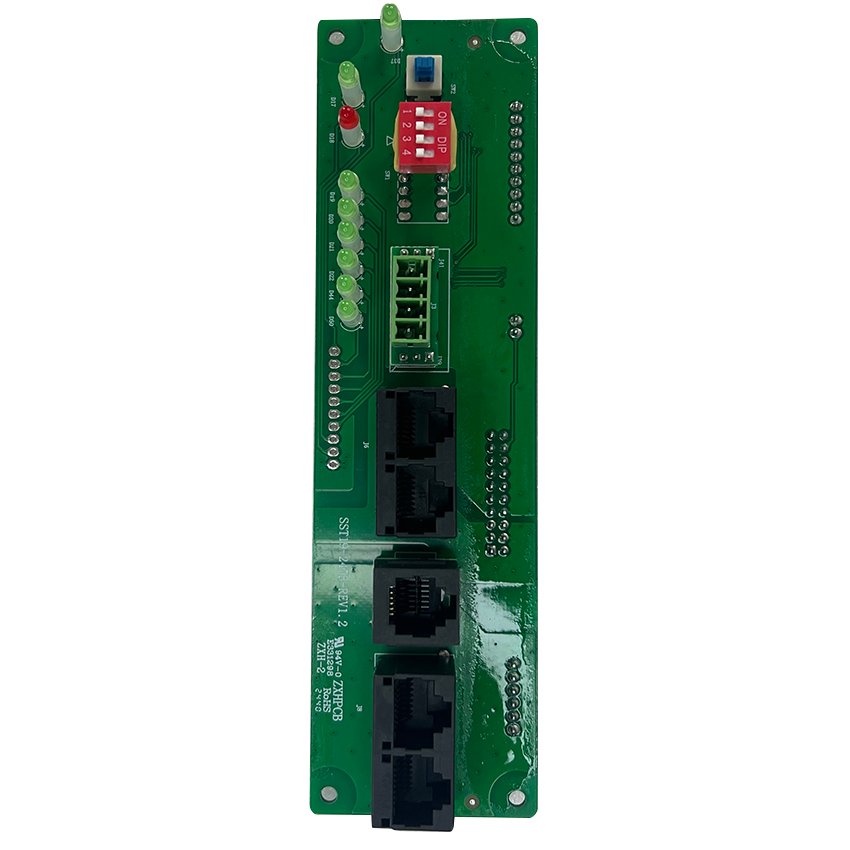

Supports multiple interfaces (CAN, RS485, Bluetooth, Wi-Fi) for easy integration with inverters and monitoring systems. Features automatic addressing for seamless scaling of up to 15 units in parallel without complex setup.
User-Friendly Operation & Diagnostics
Offers intuitive status indication via a multi-color LED bar, a mobile app for real-time monitoring (SOC, SOH, faults), and simple wake-up/sleep modes for convenient daily use and troubleshooting.
Optimized for Reliability & Cost-Effectiveness
Incorporates passive balancing to extend battery pack life and uses low-power sleep modes to reduce energy waste, providing a high-value, maintenance-free solution for residential energy storage..
Application Cases
Choosing XIHO means opting for reliability and quality. Here's why we stand out:
Factory: A 7,000-square-meter automated factory featuring 2 fully automated and 4 semi-automated production lines, and an annual production capacity of 2 GWh.
Expertise: Years of experience in the production and manufacturing of new energy lithium ion batteries.
Technology: State-of-the-art equipment for precise and efficient production.
Customer Focus: Committed to delivering exceptional service and support.
Factory panorama
Professional workshop
Quality Control
Customer Visits
Q&A
Q1:What is the maximum number of battery packs I can connect in parallel with the PACEEX 16S BMS?
You can seamlessly connect up to 15 PACEEX 16S BMS units in parallel using the built-in RS485 communication and automatic addressing feature, allowing for easy system expansion.
Q2: What communication interfaces does the PACEEX 16S BMS support for inverter integration?
It supports multiple industry-standard interfaces, including CAN and Independent RS485, ensuring reliable communication with most residential inverters for data exchange and control.
Q3: How accurate is the battery monitoring on the PACEEX 16S BMS?
It offers high-precision monitoring with a voltage sampling accuracy of ≤±10mV and current sampling accuracy of ≤±2% @FS, providing reliable data for state-of-charge (SOC) calculation and protection.
Q4:Does the PACEEX 16S BMS have a passive balancing function?
Yes, it features a passive charge balancing function. This helps to correct voltage differences between cells, maximizing the overall capacity and lifespan of your lithium iron phosphate (LiFePO4) battery pack.
Q5:How can I monitor the battery status in real-time with this BMS?
You can easily monitor key parameters like voltage, current, temperature, SOC, and faults in real-time via the dedicated mobile app using either Bluetooth or Wi-Fi connectivity.
Q6:What is the low-temperature protection threshold for the PACEEX 16S BMS?
The low-temperature charge protection is configurable via the PC software. The system monitors cell temperature to prevent charging when it's too cold, safeguarding your LiFePO4 batteries.
