Brand
CATL
Type
Lifepo4 Prismatic Cell
Capacity
280Ah
Dimensions
T72*W174*H207(mm)
Weight
5.6kg
Operating Voltage
2.5-3.65V
Discharge Temperature(℃)
-30°C~60°C
Certification
CE,UL,UN38.3,MSDS
The XIHO CATL 3.2V 100Ah LiFePO4 Battery Prismatic Cells are high-performance rechargeable lithium-ion batteries. Designed for efficiency and durability, these cells are ideal for various energy storage applications, offering reliable power with a long lifecycle.

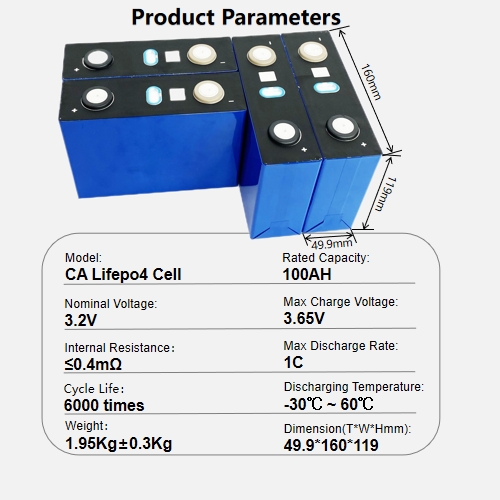

Items | Parameter |
Manufacturer | CATL |
Model No. | 001CB0Y0 |
Nominal Voltage | 3.2V |
Charge Cut-off Voltage | 3.65V |
Discharge Cut-off Voltage | 2.5V |
Typical Capcity | 100Ah |
Electric Energy | 320Wh |
Internal Resistance | ≤0.4mΩ |
Cycle Life | ≥6000 Times |
Max Charge rate | 1C |
Max Discharge rate | 1C |
Charging Working Temperature | 0°C~60°C |
Discharging Working Temperature | -20°C~60°C |
Cell Dimension | T49.9*W160*H119(mm) |
Cell Weight | 1.95kg |
Certification | CE,UL,UN38.3,MSDS |
100% Authentic Original Li-ion Battery
Guarantees reliability and top-notch quality.
Built-In Anti-Explosion & Circuit Protection
Advanced safety mechanisms ensure secure operation and durability.
Good Consistency & Low Self-Discharge
Maintains high reliability with minimal energy loss over time.
No Memory Effect
Maintains full capacity after each recharge, offering excellent discharge capability and resistance to high temperatures.
01
Smooth and Seamless Appearance:
The battery cells feature a flawless design, ensuring both aesthetic appeal and high-quality construction.
02
Original QR Code:
Each battery is equipped with a visible, scannable QR code for easy authentication and traceability.
03
Rigorous Selection Process:
Every battery undergoes a thorough voltage and internal resistance test, ensuring only high-quality cells are used.
Application Cases
Shenzhen Xiho Energy Technology Co., Ltd. dedicated to delivering high-performance energy storage systems for industries and households worldwide. With over 10+ years of expertise, we combine cutting-edge innovation, state-of-the-art facilities, and a customer-centric approach to meet the evolving demands of 100+ countries.
Factory panorama
Professional workshop
Inventory display
Team strength
FAQ
Q1：Is this Battery GRADE-A, Brand NEW?
A：It is Grade A, Brand new, the QR code is intact.
Q2：Can you test each battery PRIOR to shipping?
A：We will measure each battery'Voltage,Internal Resistance and Capacity before shipping.
Q3：Will the package tough enough to protect the cells?
A：The Battery will be packed in good condition with the thicker PE Foam, then put into the 5 layers drop-resistant carton.
Q4：Which shipping method you usually take?
A：Train/Sea DDP, Express, We can also ship with your own shipping agent.
