Brand
XIHO
Type
Wall Mounted Battery Pack
BMS
JK 16S 100A BMS
Color
White
Dimensions
T179*W375*H625.7(mm)
Cells Inside
16S Grade A EVE 3.2V 100Ah
Communication
CAN/RS485
Compatible Inverter
Growatt, DEYE,Victron, Voltronic,SMA, Sungrow, Sofar,Solis ,etc
The nominal voltage of a single LiFePO4 battery is 3.2V 100 Ah 51.2 V LiFePO4 battery consists of 16 cell connected in series. Lithium Iron Phosphate (LiFePO4 or LFP) batteries are the safest of the mainstream lithium battery types.LFP is the preferred chemistry for very demanding applications.
Items | Parameter |
Manufacturer: | XIHO |
Model No. | XH-W-5 |
BMS: | JK 16S 100A BMS |
Nominal Voltage: | 51.2V |
Nominal Capacity: | 100Ah |
Total Energy: | 5.12kWh |
Battery Type: | Prismatic LifePo4 |
Battery Cells: | 16S1P 100Ah Cells |
Max Charge Current: | 140A |
Max Discharge Current: | 200A |
Charge Cut-off Protect Voltage: | 55.2V |
Disharge Cut-off Protect Voltage: | 46V |
Communication Port: | RS485, RS232, CAN |
Parallel Connection: | Max 16 Units in Parallels |
Series Connection: | No |
Cycle life: | 5000 Times |
Dimensions: | T179*W375*H625.7(mm) |
Weight: | 45kg |
Charge Temperature (℃): | 0°C~60°C |
Discharge Temperature (℃): | -30°C~60°C |
Certification： | CE,UL,UN38.3,MSDS |
Compatible Inverter: | Growatt,DEYE,Victron,Voltronic,SMA, Sungrow,Sofar,Solis,etc |
100% High-Efficiency Discharge
Delivers consistent and maximum power output, optimizing energy usage without any loss.
Intelligent BMS System
Advanced Battery Management System (BMS) ensures real-time monitoring, efficient energy distribution, and comprehensive protection for enhanced performance and safety.
5000+ Cycles
Offers a long lifespan with over 5000 charge and discharge cycles, ensuring durability and cost-effectiveness over time.
Wide Temperature Tolerance
Operates reliably in extreme temperatures, making it suitable for diverse environments.
01
Long Life And Safety
Only install A-grade batteries to ensure long-term high-temperature resistance and safety.
02
Smart BMS
Build in BMS with self-balance for each serial of battery cell!
03
Easy Installation
The installation is very simple,lt is fashionable and space-saving.
Xiho’s 51.2V 5kWh wall-mounted lithium battery delivers high-density energy storage in a space-saving design. Built with LiFePO4 cells and smart BMS for overcharge/discharge, temperature, and short-circuit protection, it ensures 5,000+ cycles (80% capacity). Ideal for solar systems, home backup, and small-scale commercial use, it operates in -20°C–55°C (-4°F–131°F). Easy to install, scalable, and compliant with UL/CE standards. Maximize efficiency with minimal footprint—upgrade your energy setup today!
Intelligent monitoring
It can be uploaded to the cloud server through Wifi and monitored by mobile phone or computer.
Control System
Compatible with Windows system, allowing for computer monitoring and setting of battery pack operation.
BT Wireless Function
Check the working status of the battery pack within 5 meters.

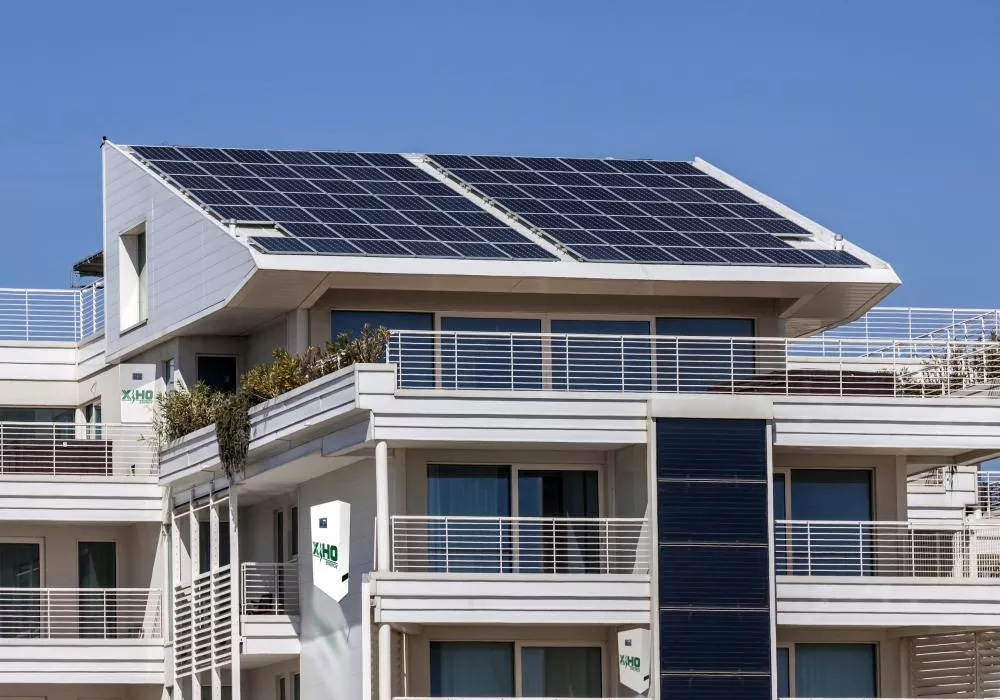

Application Cases
Shenzhen Xiho Energy Technology Co., Ltd. dedicated to delivering high-performance energy storage systems for industries and households worldwide. With over 10+ years of expertise, we combine cutting-edge innovation, state-of-the-art facilities, and a customer-centric approach to meet the evolving demands of 100+ countries.
Factory panorama
Professional workshop
Inventory display
Team strength
Q&A
Q1:What BMS is in the battery box?
We use the 100/150/200A BMS in the box with CAN/RS485 Communications.
Q2:Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Tested and label the data on each cell
Q3:How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.
Q4:Which shipping method you usually take?
Train/Sea DDP, Express, We can also ship with your own shipping agent.
