Brand
XIHO
Function
Test IR Voltage
IR Testing Range
0-200Ω
Accuracy
0.1mΩ, 1mΩ, 10mΩ
Voltage Testing Range
0-100V
Voltage Resolution Ratio
1mV, 10mV, 100mV
Dimensions
15*10*10cm
Weight
0.7Kg

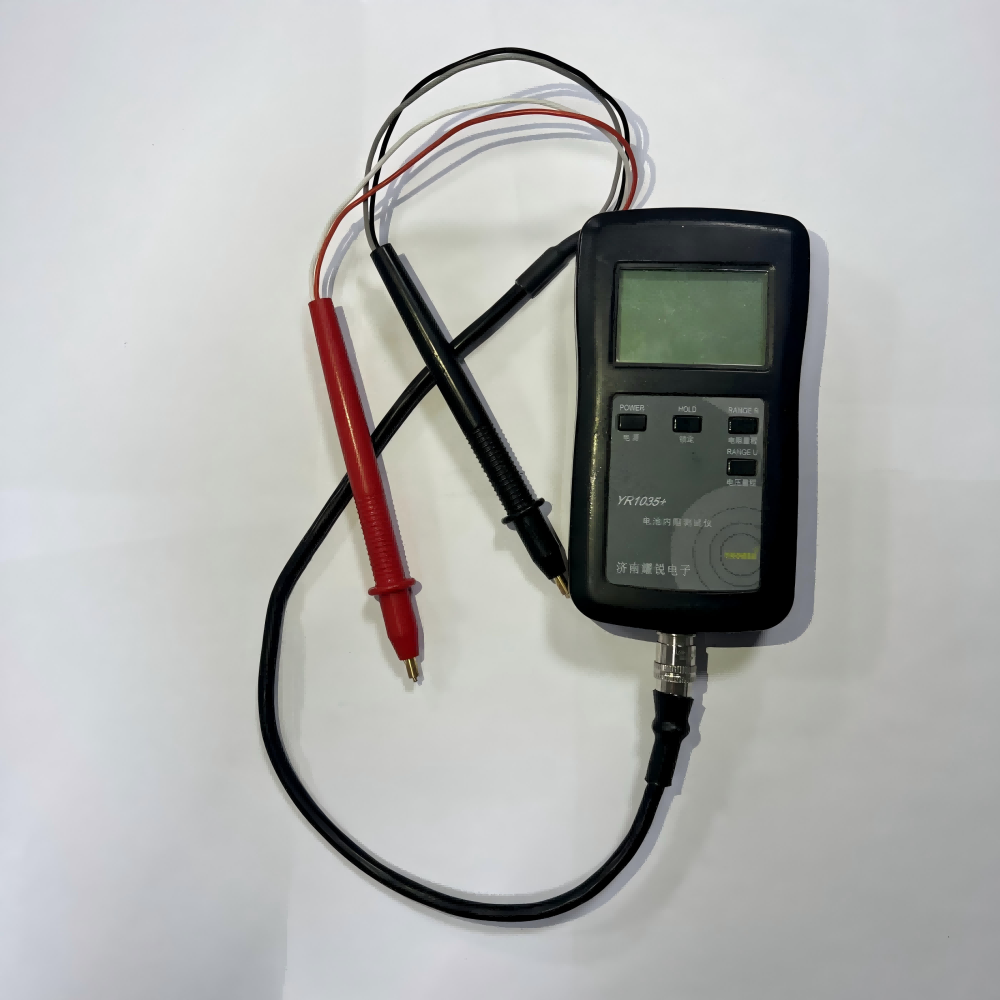

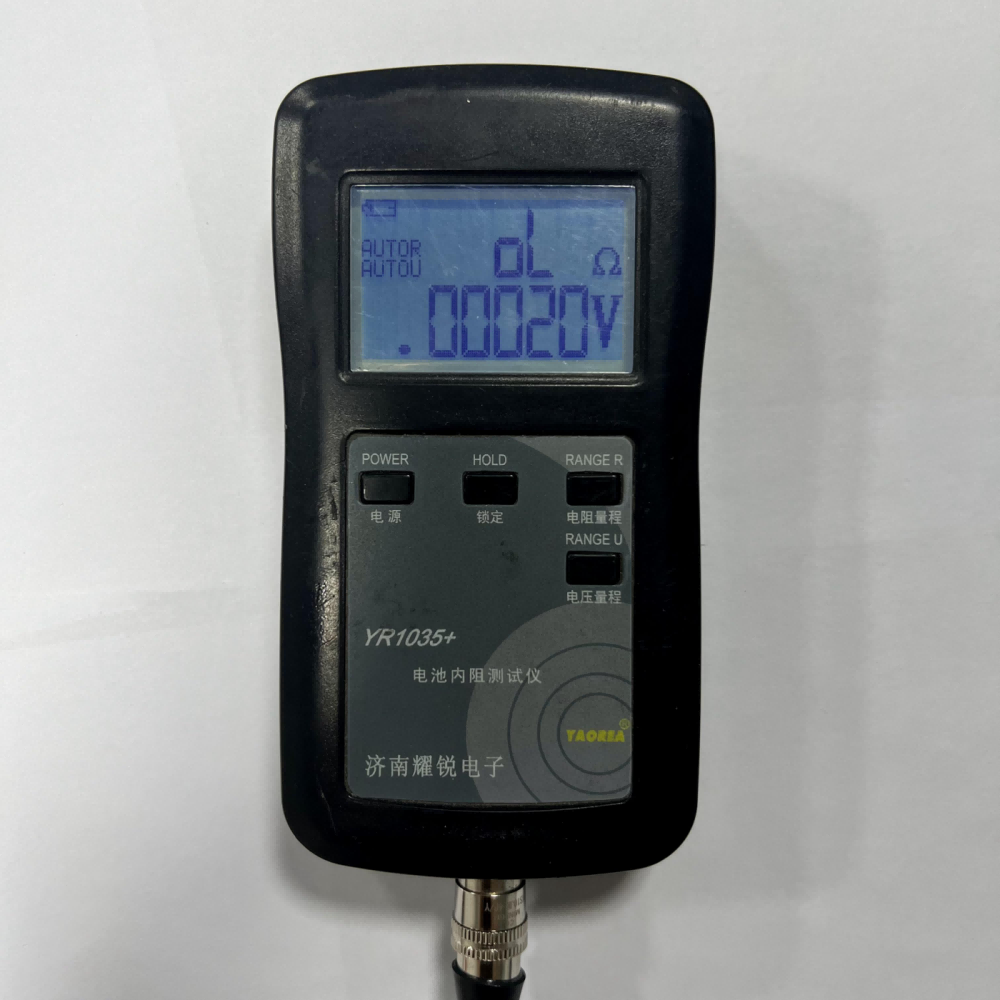

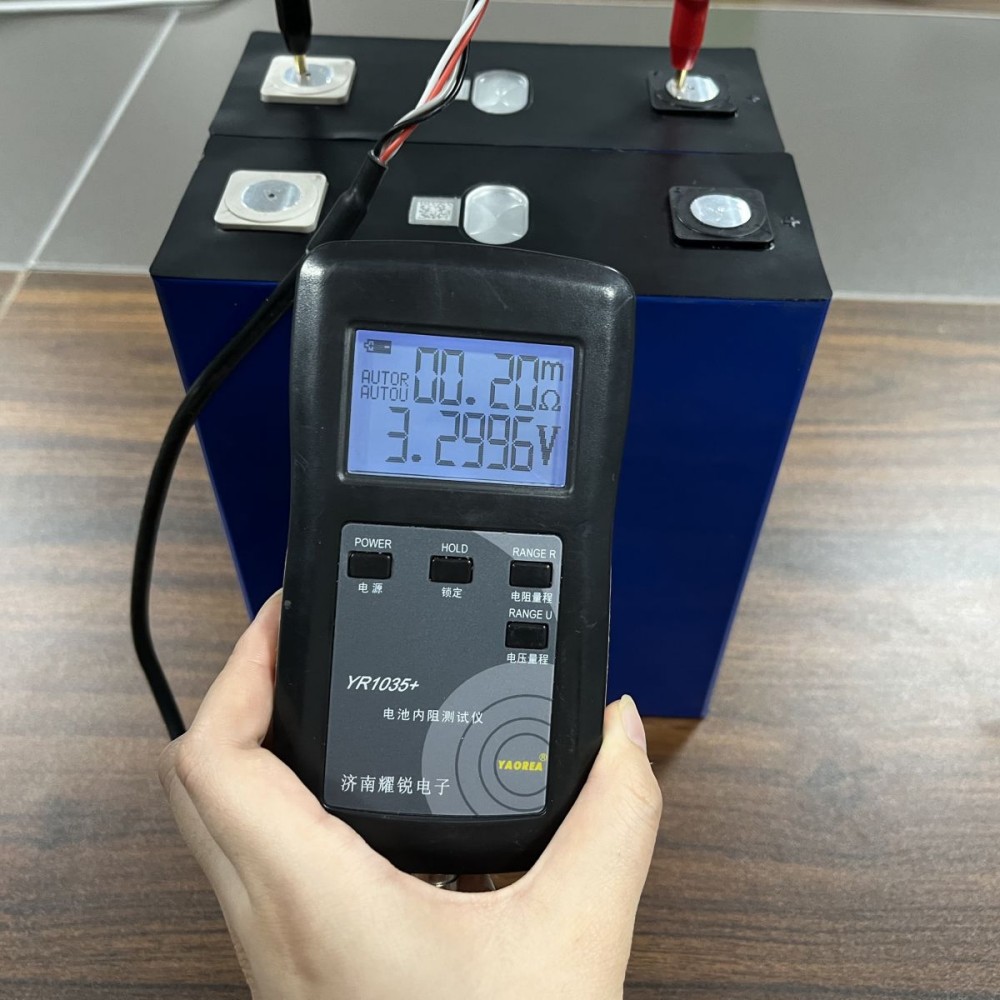

The YR1035+ Meter is a precise IR tester for lithium-ion batteries, measuring internal resistance and voltage. Compact and user-friendly, it ensures battery health and performance, ideal for maintenance and quality control in various applications.
Items | Parameter |
Manufacturer: | XIHO |
Model No. | YR1035+ |
Function: | Test IR Voltage |
Inner Resistance Testing Range: | 0-200Ω |
Accuracy: | 0.1mΩ, 1mΩ, 10mΩ |
Voltage Testing Range | 0-100V |
Voltage Resolution Ratio: | 1mV, 10mV, 100mV |
Related Industry: | Battery Factory manufacturer |
Package: | 1xYR1035+ Tester and 1xSet of Clips |
Dimensions: | 15*10*10cm |
Weight: | 0.7Kg |
High-Precision AC Measurement
Uses 1kHz AC signal for accurate internal resistance testing, ensuring reliable results.
Four-Wire Kelvin Method
Eliminates measurement errors from lead resistance, delivering precise voltage readings.
Dual-Function Meter
Measures both internal resistance and voltage, providing comprehensive battery health data.
User-Friendly Design
Compact, portable, and easy to use, with clear display and simple operation for quick testing.
Application Cases
Shenzhen Xiho Energy Technology Co., Ltd. dedicated to delivering high-performance energy storage systems for industries and households worldwide. With over 10+ years of expertise, we combine cutting-edge innovation, state-of-the-art facilities, and a customer-centric approach to meet the evolving demands of 100+ countries.
Factory panorama
Professional workshop
Inventory display
Team strength
FAQ
Q1:What is the measurement range of the YR1035+ IR Tester?
The YR1035+ can measure internal resistance from 0.01 mOhm to 200 Ohms and voltage up to 100V DC. It offers high precision and resolution for both parameters.
Q2: How accurate is the YR1035+ for low internal resistance measurements?
The YR1035+ is highly accurate, especially for low resistance measurements. It can measure internal resistance as low as 0.3 mOhm with an accuracy of ±0.5% + 5 digits.
Q3: Can the YR1035+ be used for different types of batteries?
Yes, the YR1035+ is versatile and can measure internal resistance and voltage for various batteries, including lithium-ion, lead-acid, Ni-MH, LiFePO4, and more.
Q4:What are the advantages of using the YR1035+ over other testers?
The YR1035+ uses a true four-wire method and 1kHz AC sinusoidal measurement, ensuring high accuracy and stability. It also features a wide voltage range (up to 100V) and a user-friendly LCD display.
