Brand
Megarevo
Type
O5KL1D
Dimensions
W467*H454*200D(mm)
Weight
17Kg
Input Voltage
48V
MPPT Voltage Range
100-430V
Working Temperature(℃)
-45~60℃
Communication with BMS
CAN/RS485
Featuring strong load and grid adaptability, up to 1.5x PV power with zero noise, a large touchscreen, IP65 protection for extended lifespan, and support for three-phase operation and up to four units in parallel.
Items | Parameter |
Manufacturer: | Megarevo |
Model No. | O5KL1D |
Input Voltage: | 48V |
Output Voltage: | 100-430V |
Output Current: | 26.1A |
Output Frequency: | 50/60Hz |
Max Input Power: | 7500W |
MPPT Voltage Range: | 100-430V |
Output Voltage Waveform: | Pure Sine Wave |
Dimensions: | 467W*454H*200D(mm) |
Weight: | 17kg |
Working Temperature: | -45~60℃ |
Noise(dB): | <30 dB |
Communication with BMS: | RS485/CAN |
Protection Degree: | IP65 |
Application: | Off-Grid Inverter Solar Power System |
Application flexibility
IP65 protection level, more flexible application scenarios.
Flexible configuration

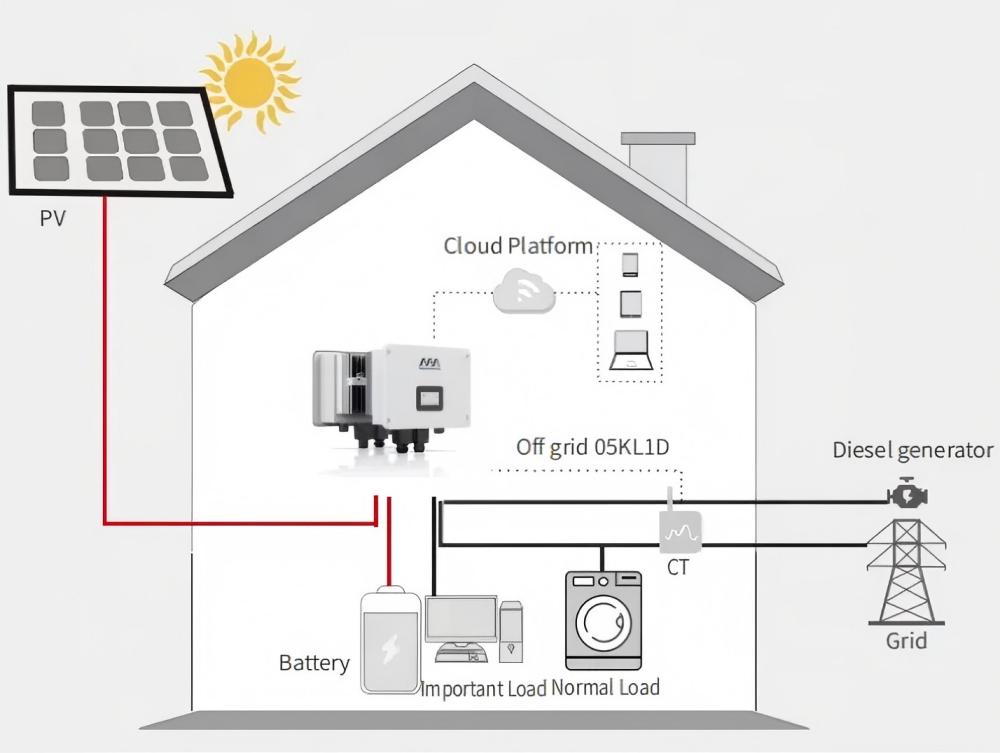

Support PV, diesel generator, battery, load at the same time access Various working modes can be set flexibly.
Supports expansion
Supports 6 pcs in parallel and it can be extended to 30kW.
Compact Design

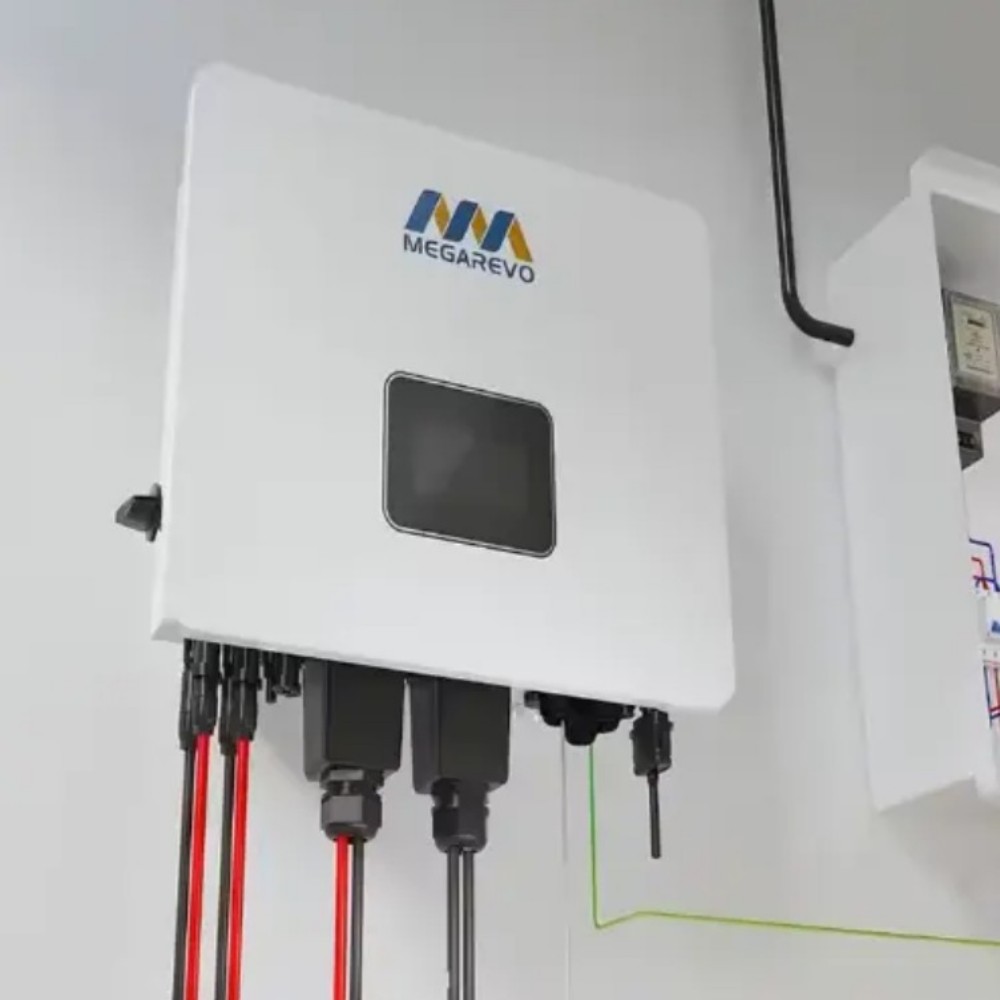

Wall-mounted and space-saving, ideal for residential installations with limited space.
01
High Efficiency & Smart Control

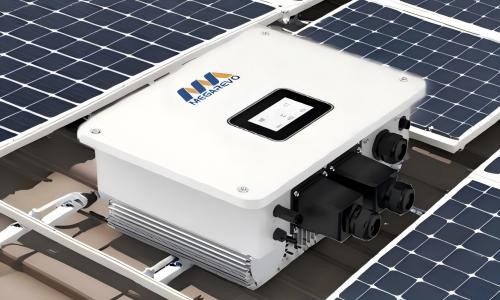

5KW O5KL1D supports up to 1.5x DC oversizing, features an LCD display, and offers WIFI/GPRS remote monitoring for easy management.
02
Flexible System Expansion
Compatible with 48V batteries (e.g., Pylontech, Dyness). Supports up to 6 units in parallel, expandable up to 30KW
03
Durable & Quiet Operation
IP65-rated for indoor/outdoor use, with low noise (<35 dB) due to natural cooling, ensuring a quiet environment
The Megarevo 5KW O5KL1D Off-grid Solar Power Inverter is designed for versatile applications, including residential homes, small commercial setups, and remote locations. It provides reliable backup power during outages and supports seamless energy storage integration with 48V batteries. Perfect for off-grid living, microgrid systems, and sustainable energy management, this inverter ensures efficient power supply in diverse environments.

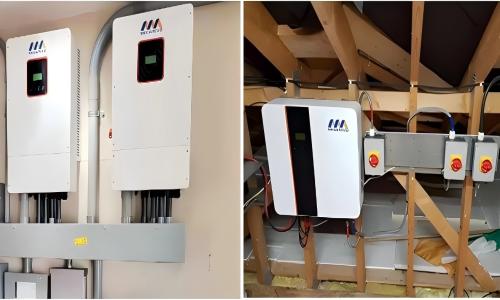

Application Cases
Shenzhen Xiho Energy Technology Co., Ltd. dedicated to delivering high-performance energy storage systems for industries and households worldwide. With over 10+ years of expertise, we combine cutting-edge innovation, state-of-the-art facilities, and a customer-centric approach to meet the evolving demands of 100+ countries.
Factory panorama
Professional workshop
Inventory display
Team strength
FAQ
Q1:What are the key features of the Megarevo 5KW O5KL1D Off-grid Inverter?
The Megarevo 5KW O5KL1D is designed for off-grid applications, supporting up to 1.5x DC oversizing and 48V battery storage. It features an LCD display for easy operation, optional WIFI/GPRS remote monitoring, and IP65 protection for indoor/outdoor use.
Q2:Can the O5KL1D be used with different types of batteries?
Yes, the O5KL1D supports both lithium-ion and lead-acid batteries with a voltage range of 40-56V. It also offers a self-adaptation charging strategy for lithium batteries, ensuring compatibility and flexibilit.
Q3: How can I monitor and control the O5KL1D Inverter remotely?
The O5KL1D supports remote monitoring and control via WIFI or GPRS modules. You can manage the inverter through a mobile app or web interface, allowing you to monitor performance, adjust settings, and receive real-time alerts.
Q4: Is the O5KL1D suitable for residential and commercial use?
Absolutely. The O5KL1D is ideal for residential energy storage, providing reliable backup power during outages. It is also suitable for small commercial setups and microgrid applications, supporting up to 6 units in parallel for scalable power solutions.
